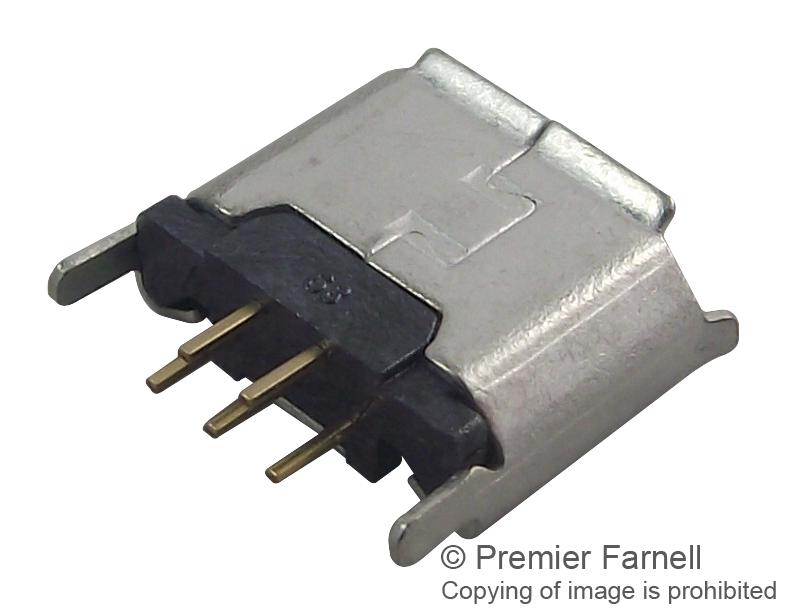

WURTH ELEKTRONIK 614105150721 Micro USB Connector
The 614105150721 is a vertical Micro USB Type-B receptacle with gold-plated copper alloy contacts and an LCP insulator. Supporting USB 2.0 specifications, it features 5 contact positions and through-hole mounting for easy PCB integration. Designed for durability, it withstands up to 10,000 mating cycles, making it ideal for computers and peripheral devices. The black connector has an insulation resistance of 1000 Megaohms, a maximum contact resistance of 30 milliohms, and complies with lead-free JEDEC wave soldering processes. Perfect for reliable device connectivity and electronic applications requiring high durability.
WURTH ELEKTRONIK 614105150721 Micro USB Connector Specifications:
- Material: LCP insulator, copper alloy contacts, stainless steel shield
- Contact Plating: Gold
- Number of Contacts: 5
- Mounting Type: Through-hole
- Durability: 10,000 mating cycles
- Operating Temperature: -40°C to +85°C
- Insulation Resistance: >1000 Megaohms
- Contact Resistance: 30 milliohms max
- Voltage Rating: 30 VAC
- RoHS Compliant and Lead-Free
- Supported Standards: USB 2.0
- Flammability: UL94-VO
- Color: Black
- Compliance: JEDEC wave soldering
- Environmental: RoHS compliant, suitable for high-reliability devices
- Quantity per Reel: 1500 pcs, Reels per carton: 14, Total pcs: 21000
- Dimensions and PCB Layout: As per detailed technical drawings, recommended PCB thickness 1.0 mm
Buy the Wurth Elektronik 614105150721 – Reliable USB Connector for Industrial Applications
Enhance your electronic designs with the reliable Micro USB connector designed for durability and high performance. This vertical USB Type-B receptacle features gold-plated contacts for optimal conductivity and corrosion resistance, supporting USB 2.0 standards. Its robust construction withstands up to 10,000 mating cycles, ensuring long-term performance. Suitable for computers, peripherals, and industrial applications, it complies with RoHS and lead-free JEDEC wave soldering standards. Order online today for fast delivery and ensure your electronic projects are equipped with dependable, industry-grade connectivity solutions.
Order your Wurth Elektronik Series 614105150721 USB connector today and give your projects the dependable quality they deserve, supporting high durability and connectivity reliability.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 614105150721?
You can click on the BUY or RFQ button to purchase 614105150721 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 614105150721?
You can download the 614105150721 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 614105150721?
WURTH ELEKTRONIK
