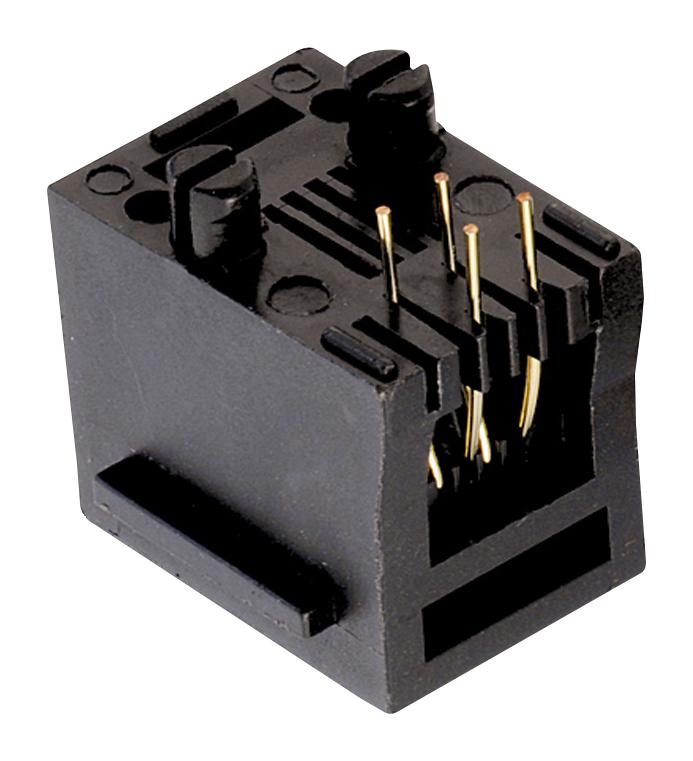

WURTH ELEKTRONIK 615004144021 Modular Jack
The WR-MJ Modular Jack with Panel by Wurth Elektronik is a high-quality connector designed for reliable electronic connections. It features a vertical plastic housing, 4P4C configuration, and gold-plated contacts for enhanced durability. Suitable for general electronic equipment, it offers durability with 500 mating cycles, operates within -40°C to +85°C, and complies with RoHS and UL standards. This modular jack facilitates efficient panel mounting and ensures stable connections in various industrial, automotive, and communication applications, emphasizing long-lasting performance and high safety standards.
WURTH ELEKTRONIK 615004144021 Modular Jack Specifications:
- Insulator Material: PBT
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Contact Type: Stamped
- Number of Pins: 4P4C
- Operating Temperature: -40°C to +85°C
- Rated Current: 1.5 A
- Working Voltage: 120 V AC
- Withstanding Voltage: 1000 V AC for 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 500 MΩ
- Durability: 500 mating cycles
- Certification: RoHS, UL
Buy the Buy Wurth Elektronik Modular Jack Part Number 615004144021 Online
Purchase the Wurth Elektronik Modular Jack today for secure and reliable electrical connections. Designed with a robust plastic housing, gold-plated contacts, and rated for up to 500 mating cycles, this high-quality connector operates efficiently within -40°C to +85°C. It meets RoHS and UL certifications, making it suitable for industrial, automotive, and communication systems. Easy to install on panels, it ensures stable performance and long-lasting durability. Order online now for quick delivery and expert support.
Get Wurth Elektronik 615004144021 today—built for reliable, durable connections in electronic and industrial applications.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 615004144021?
You can click on the BUY or RFQ button to purchase 615004144021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 615004144021?
You can download the 615004144021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 615004144021?
WURTH ELEKTRONIK
