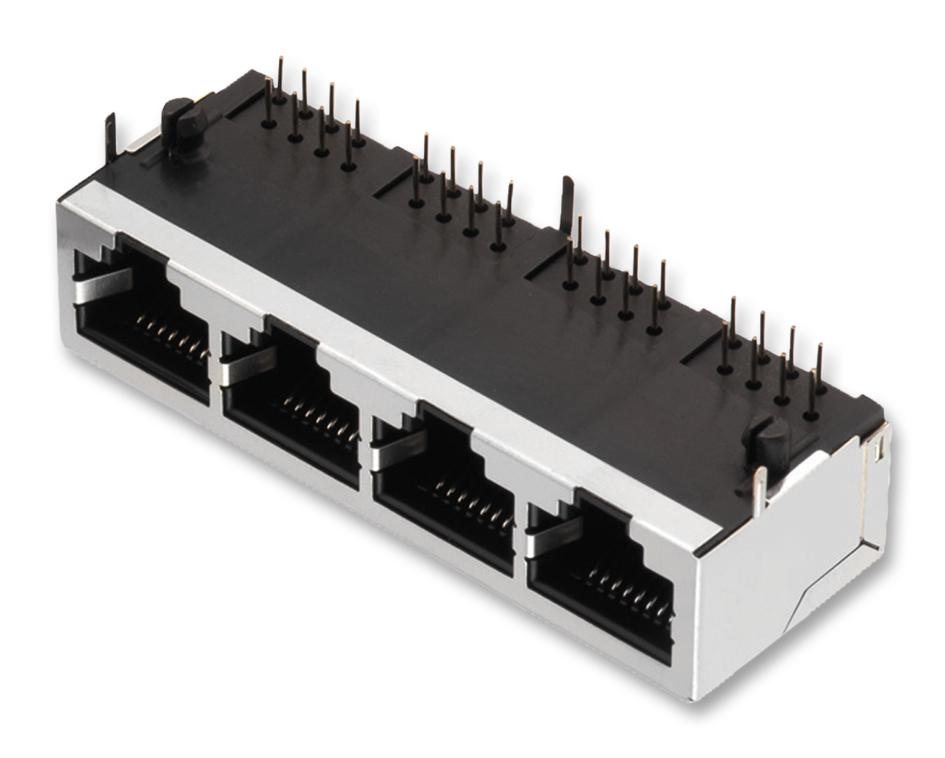

WURTH ELEKTRONIK 615032137821 Modular Jack Tab Down
The Würth Elektronik WR-MJ Modular Jack (Part Number 615032137821) is a robust connector designed for general electronic equipment. It features an 8P8C configuration, providing ample connections for various applications. The jack is shielded and ganged, making it suitable for applications requiring organized and protected connections. Constructed with a PBT insulator and copper alloy contacts with selective gold plating, it ensures reliable signal transmission and durability. It is RoHS compliant and operates effectively within a temperature range of -40°C to +85°C. This connector is not intended for use in critical safety applications without proper evaluation and agreement.
WURTH ELEKTRONIK 615032137821 Modular Jack Tab Down Specifications:
- Number of Pins (xPxC): 8P8C
- Durability: 500 Mating cycles
- Insulator Material: PBT
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Contact Type: Stamped
- Shielding Material: Bronze
- Shielding Plating: Nickel (Ni)
- Operating Temperature: -40 up to +85 °C
- Rated Current: 1.5 A
- Working Voltage: 20 V (AC)
- Withstanding Voltage: 1000 V (AC)
- Contact Resistance: 20 mΩ (max.)
- Insulation Resistance: 500 MΩ (min.)
- RoHS Approval: Compliant [2011/65/EU&2015/863]
- REACh Approval: Conform or declared [(EC)1907/2006]
- UL Approval: E324776
- Packaging Unit: 20 pcs
- Tray Length (L TRA): 150 mm
- Tray Length 1 (L1 TRA): 122 mm
- Tray Width (W TRA): 295 mm
- Tray Width 1 (W1 TRA): 244 mm
- Tray Width 2 (W2 TRA): 28 mm
- Tray Height (H TRA): 23 mm
