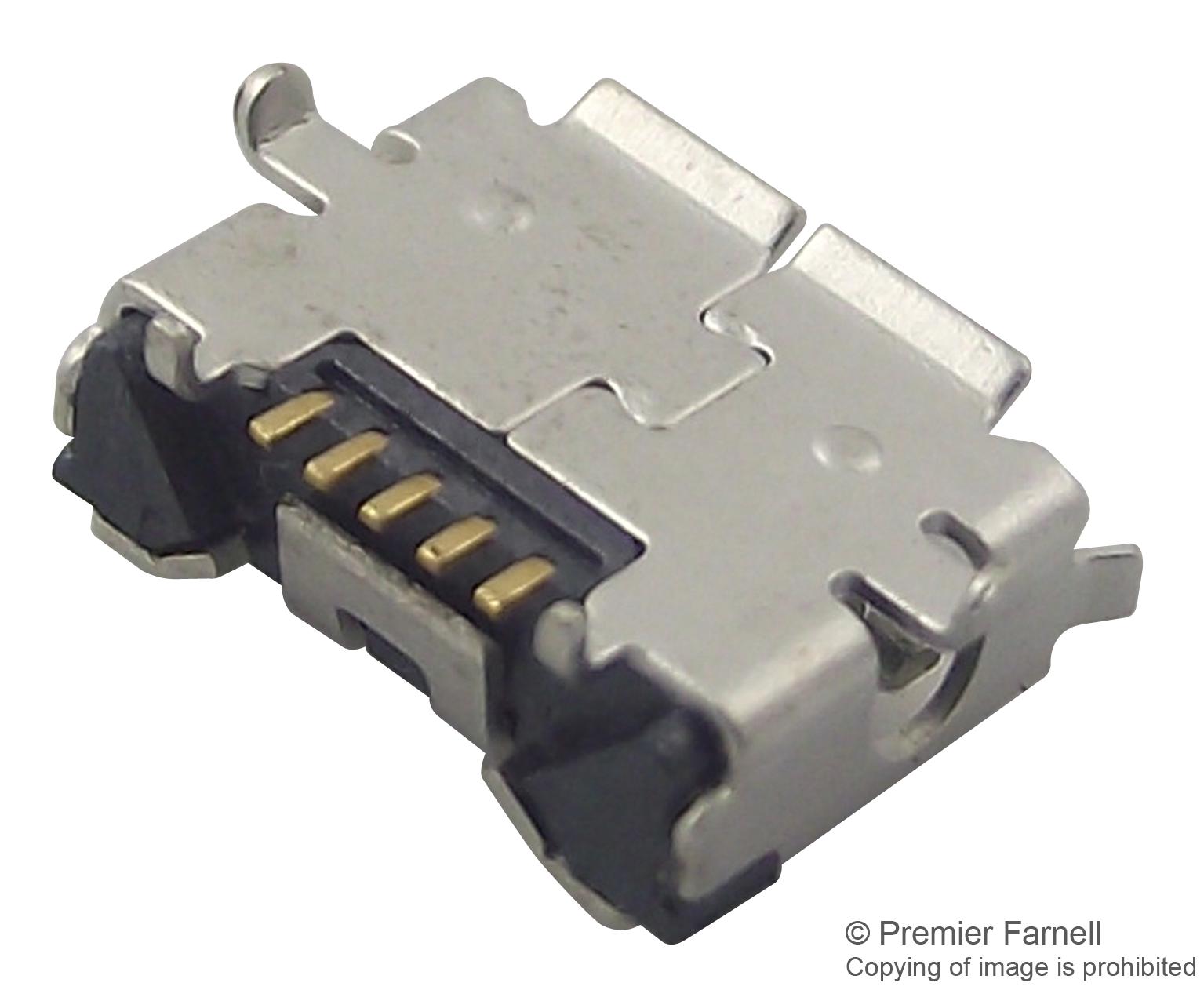

WURTH ELEKTRONIK 629105150921 Micro USB Connector
The Micro USB 2.0 Horizontal Connector is a right-angle surface-mount receptacle with five SMT contacts, featuring gold-plated copper alloy contacts for reliable signal transmission. Made with an LCP insulator and stainless steel shielding, it supports USB 2.0 specifications and offers durability with 10,000 mating cycles. With a maximum contact resistance of 30 milliohms and a working voltage of 30 V (AC), it is halogen-free, RoHS compliant, and designed for high-performance electronic devices like computers and peripherals. It withstands reflow soldering in accordance with JEDEC standards, ensuring quality solder joints and long-term functionality.
WURTH ELEKTRONIK 629105150921 Micro USB Connector Specifications:
- Number of contacts: 5 SMT contacts
- Contact material: Copper Alloy
- Contact plating: Gold
- Insulator material: LCP
- Insulator color: Black
- Shell shielding: Stainless Steel
- Shielding plating: Matte Tin
- Rated current: 1.8 A
- Working voltage: 30 V(AC)
- Maximum contact resistance: 30 mΩ
- Insulation resistance: 1000 MΩ minimum
- Durability: 10,000 mating cycles
- Halogen Free: Yes
- RoHS compliant: Yes
- Reflow soldering compatible: Yes, JEDEC J-020D-STD
- Maximum operating temperature: -40°C to +85°C
Buy the Buy WE ELEKTRONIK Micro USB 2.0 Horizontal Part Number 629105150921 Online
Enhance your electronic projects with the durable and high-quality Micro USB 2.0 Horizontal connector from WE ELEKTRONIK. Featuring five gold-plated copper alloy contacts and a robust insulator, this surface-mounted connector supports 10,000 mating cycles and complies with JEDEC reflow soldering standards for quality assembly. It is Halogen Free, RoHS compliant, and suitable for computers, peripherals, and other high-performance applications. Buy online now to ensure seamless connectivity and long-term reliability for your device needs.
Order your WE ELEKTRONIK Micro USB 2.0 Horizontal connector today and ensure reliable connection quality for your electronic devices.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 629105150921?
You can click on the BUY or RFQ button to purchase 629105150921 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 629105150921?
You can download the 629105150921 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 629105150921?
WURTH ELEKTRONIK
