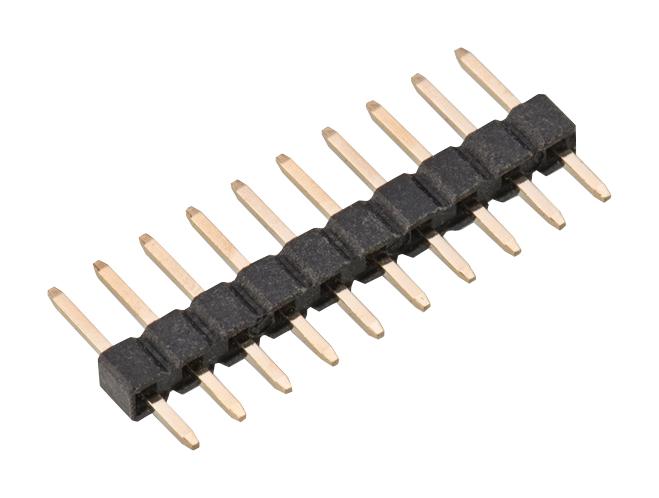

WURTH ELEKTRONIK 62002011121 THT Straight Single Pin Header
The Würth Elektronik 62002011121 is a through-hole technology (THT) straight single pin header designed for reliable PCB termination. It boasts a 2.00mm pitch and utilizes a PA9T insulator for excellent electrical and mechanical properties. The gold-plated copper alloy contacts ensure low contact resistance and corrosion resistance, making it suitable for a wide range of electronic applications. This component is RoHS compliant and intended for use in general electronic equipment, not critical safety applications.
WURTH ELEKTRONIK 62002011121 THT Straight Single Pin Header Specifications:
- Dimensions_L: 4.00 ± 0.40 mm
- Dimensions_Pl: 2.00 ± 0.20 mm
- Dimensions_2: 2.00 ± 0.10 mm
- Dimensions_3: 0.50 ± 0.25 mm
- Recommended_Hole_Pattern_pl: 0.80 mm
- General_tolerance: ±0.05 mm
- Pin_to_Pin_Middle: 38 mm
- Length: 4.00 mm
- Pitch_P: 2.00 mm
- Quality_Class: 3 as per CECC 75 301-802
- Rows: Single
- Gender: Male
- Insulator_Material: PA9T
- Insulator_Flammability_Rating: UL94 V-0
- Insulator_Color: Black
- Contact_Material: Copper Alloy
- Contact_Plating: Gold
- Contact_Type: Stamped
- Standard_Polarities: 02;03;04;06;08;10;20;32
