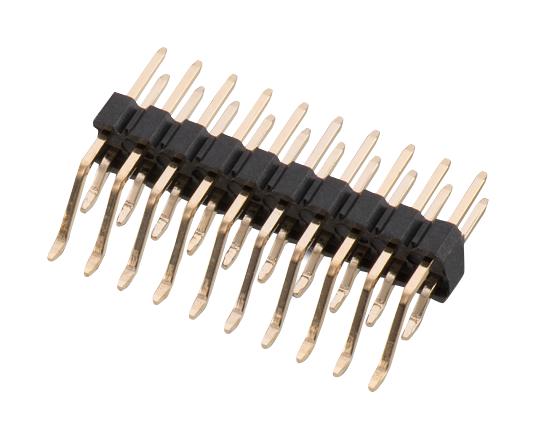

WURTH ELEKTRONIK 621308284521 SMT Connector
The WURTH WR-PHD SMT Angled Dual Pin connector is designed for reliable, high-current electronic connections in compact applications. Made with copper alloy contacts plated in gold, it ensures excellent conductivity and corrosion resistance. The connector features 8 pins with a pin-to-pin spacing of 6 mm, an overall length of 8 mm, and contact resistance of max. 20 mΩ. Rated for 2 A current and a working voltage of 200 VAC, it conforms to international safety and environmental standards including RoHS and REACH, making it suitable for various industrial electronic equipment.
WURTH ELEKTRONIK 621308284521 SMT Connector Specifications:
- Pins: 8
- Pin-to-Pin (Middle) Distance: 6 mm
- Overall Length: 8 mm
- Length (Component): 4 mm
- Rated Current: 2 A
- Working Voltage: 200 VAC
- Withstanding Voltage: 500 V for 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Material: Copper Alloy
- Contact Plating: Gold
- Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +105°C
- Certifications: RoHS, REACH, UL Listed [E323964]
Buy the Buy WURTH SMT Connector Part Number 621308284521 Online
Purchase the WURTH SMT connector part number 621308284521 online today and ensure your electronic projects benefit from high-quality connections. This angled dual pin connector is designed for durability, with gold-plated contacts for excellent conductivity and corrosion resistance. Its compact size and rated current of 2 A make it ideal for demanding industrial applications requiring reliable, high-performance connections. Easy to install and compliant with international safety standards, this connector is your perfect choice for ensuring robust electronic interfaces in various high-reliability environments.
Buy WURTH 621308284521 now and experience unmatched reliability and high-current performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 621308284521?
You can click on the BUY or RFQ button to purchase 621308284521 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 621308284521?
You can download the 621308284521 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 621308284521?
WURTH ELEKTRONIK
