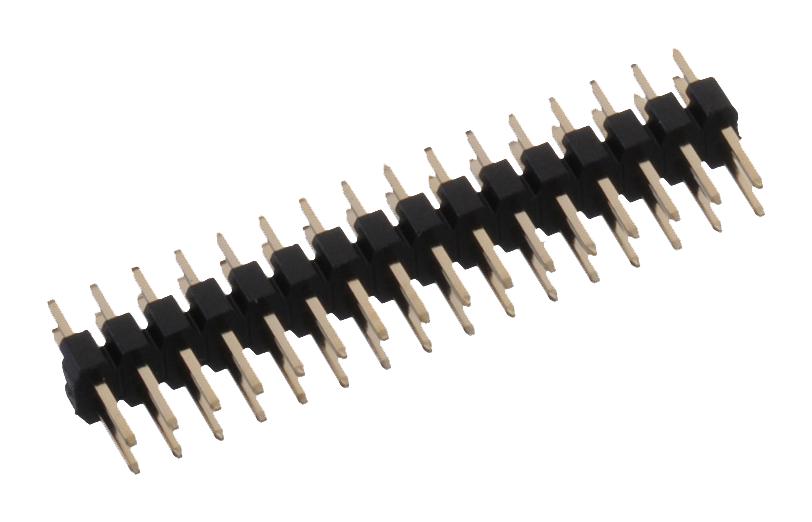

WURTH ELEKTRONIK 62002021121 THT Straight Dual Pin Header
The Würth Elektronik WR-PHD 62002021121 is a through-hole (THT) straight dual pin header designed for secure and reliable connections in various electronic applications. Constructed with a PA9T insulator and gold-plated copper alloy contacts, this header offers excellent electrical performance and durability. It is RoHS compliant and suitable for use in general electronic equipment, excluding applications requiring high safety or reliability standards such as aerospace or medical devices. The header's design facilitates easy integration into printed circuit boards, contributing to efficient assembly processes. It is packaged in bags and cartons for convenient handling and storage.
WURTH ELEKTRONIK 62002021121 THT Straight Dual Pin Header Specifications:
- Dimensions_L: 2
- Dimensions_Pl: 2
- Dimensions_End: 2
- Recommended_Hole_O: 0.8
- Pattern_l: 2
- Pin_to_Pin_Middle: 18
- Pitch_P: 2
- Durability: 25 Mating cycles
- Insulator_Material: PA9T
- Insulator_Flammability_Rating: UL94 V-0
- Insulator_Color: Black
- Contact_Material: Copper Alloy
- Contact_Plating: Gold
- Contact_Type: Stamped
- Operating_Temperature: -40 to +105 °C
- Rated_Current_IR: 2 A
- Working_Voltage: 200 V (AC)
- Withstanding_Voltage: 500 V (AC)
- Contact_Resistance_R: 20 mΩ
- Insulation_Resistance_RISO: 1000 MΩ
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- UL_Approval: E323964
- Packaging_Unit_Bag: 500
- Packaging_Unit_Carton: 12000
