WURTH ELEKTRONIK 150161M153130 Full-color LED
The WL-SFTD SMT Full-color Top LED features diffused lenses with high luminous efficacy, emitting red, green, and blue light. Designed for surface-mount technology, these LEDs operate within -40°C to +85°C and have advanced optical and electrical properties, including peak wavelengths of 465 nm (blue), 515 nm (green), and 635 nm (red). They are RoHS, REACH, and halogen-free compliant, suitable for high-reliability electronic applications that demand efficient, durable, and environmentally friendly components.
WURTH ELEKTRONIK 150161M153130 Full-color LED Specifications:
- Optical Properties: Emitting Colors - Red, Green, Blue; Peak Wavelengths - Blue 465 nm, Green 515 nm, Red 635 nm; Spectral Bandwidth - Blue 20 nm, Green 35 nm, Red 15 nm.
- Electrical Properties: Forward Voltages - Blue & Green 3.2-3.4 V, Red 2-2.6 V; Typical Forward Current - 20 mA; Max Peak Forward Current - 60 mA; Reverse Voltage - 5 V.
- Physical & Mechanical: Chip Technology - AllnGaP + GaN; Lens Type - Top LED, Diffused; Housing Color - Black; Storage Conditions - in original package, < 40°C, < 90% RH; Operating Temperature - -40°C to +85°C.
- Certifications & Standards: RoHS 2011/65/EU, REACH, Halogen Free (IEC 61249-2-21, JEDEC JS709B); Moisture Sensitivity Level - 1a; Soldering Profile - Preheat 150-200°C, Ramp rates 3°C/sec.
- Compliance & Handling: Designed for general electronic use, but must not be used in safety-critical applications without prior evaluation; Handle carefully to prevent damage, use ESD protections, and follow manufacturer’s soldering and cleaning guidelines.

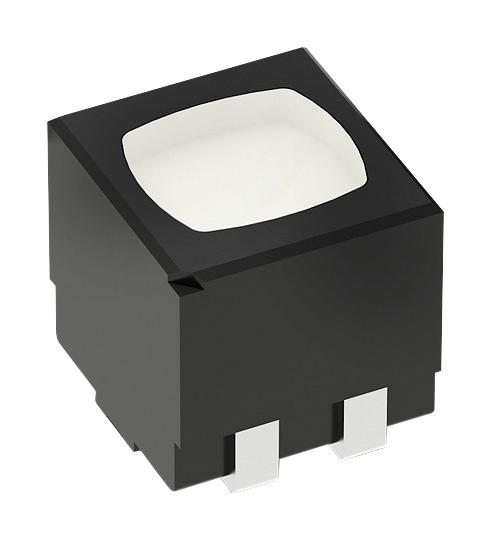

Buy the Buy WURTH ELEKTRONIK Full-color Top LED Part Number 150161M153130 Online
Order the WURTH ELEKTRONIK full-color SMT LED online today. With superior optical performance, reliable electrical characteristics, and compliance with safety standards, this diffused top LED is ideal for various electronic applications. Designed for surface-mount technology, it offers excellent durability, broad operating temperature range, and environmentally friendly features such as RoHS, REACH, and halogen-free compliance. Secure your supply of high-quality, ready-to-assemble LEDs now and enhance your electronic designs with confidence.
Buy WURTH ELEKTRONIK 150161M153130 now and experience high luminous intensity and reliable performance for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 150161M153130?
You can click on the BUY or RFQ button to purchase 150161M153130 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 150161M153130?
You can download the 150161M153130 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 150161M153130?
WURTH ELEKTRONIK
