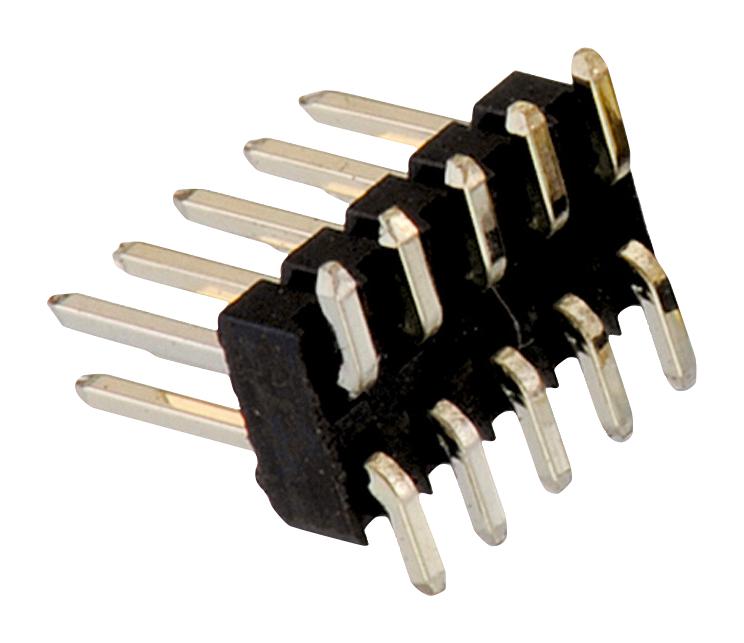

WURTH ELEKTRONIK 62102021021 SMT Dual Pin Header
This SMT straight dual pin header features a 1.27mm pitch, gold-plated copper alloy contacts, and operates from -40°C to +105°C. It complies with RoHS standards and offers a rated current of 1A with a working voltage of 100V AC. The device withstands up to 500 VAC for 1 minute and has a contact resistance of max 20 mΩ, fitted with UL94 V-0 flammability rated insulator material. Designed for reliable electronic connections in compact assemblies, it ensures secure mating with coplanarity of 100 µm and a robust construction suitable for industrial and consumer electronics.
WURTH ELEKTRONIK 62102021021 SMT Dual Pin Header Specifications:
- Pitch: 1.27 mm
- Contact Material: Copper Alloy with Gold Plating
- Insulator Color: Black
- Operating Temperature: -40°C to +105°C
- Rated Current: 1 A
- Working Voltage: 100 VAC
- Withstanding Voltage: 500 VAC for 1 min
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 1000 MΩ
- Soldering Profile: IPC/JEDEC J-STD-020 standard, Preheat min 150°C, max 200°C, Duration 60–120 sec
- Max Reflow Temperature: 260°C for PB-Free, 1.6mm package thickness
- UL94 V-0 flammability rating
- Pack Size: 45 units
- Coplanarity: 100 μm
Buy the Wirth Elektronik 62102021021 – Reliable SMT Dual Pin Header for Industrial Applications
Order the Wirth Elektronik SMT Dual Pin Header now to ensure secure, high-quality connections in your electronic assemblies. This 1.27mm pitch header features gold-plated copper contacts, operating from -40°C to +105°C, rated for 1A current. With UL94 V-0 flammability, 500 VAC withstand voltage, and RoHS compliance, it’s ideal for industrial, consumer, and automation systems. Packaged in 45 units, it offers excellent coplanarity of 100 μm and is suitable for reflow soldering using standard profiles, providing reliable performance for demanding electronics environments.
Buy Wirth Elektronik 62102021021 now and experience unmatched reliability and performance in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 62102021021?
You can click on the BUY or RFQ button to purchase 62102021021 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 62102021021?
You can download the 62102021021 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 62102021021?
WURTH ELEKTRONIK
