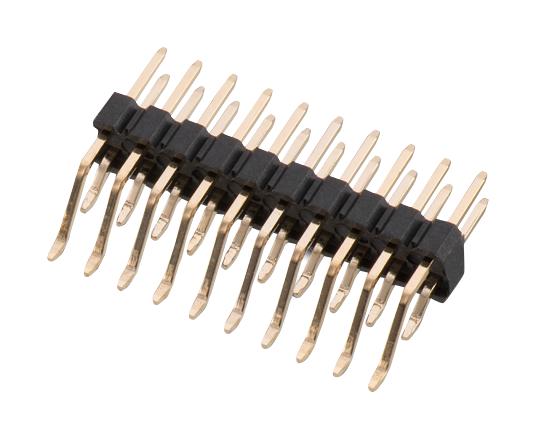

WURTH ELEKTRONIK 621304284521 Dual Pin Header
The WR-PHD SMT Angled Dual Pin header is a high-quality electronic connector designed for efficient and reliable PCB connections in various electronic applications. Featuring a 2 mm pitch and a robust copper alloy contact with gold plating, it ensures durability and excellent conductivity. Capable of withstanding up to 500 V and 2 A rated current, this dual pin header is suitable for demanding environments, complying with RoHS, REACH, and UL standards. Its compact design facilitates easy assembly and secure connections, making it ideal for industrial, consumer, and automation equipment requiring high safety and performance standards.
WURTH ELEKTRONIK 621304284521 Dual Pin Header Specifications:
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Number of Pins: 4
- Pin to Pin (Middle): 2 mm
- Rated Current: 2 A
- Working Voltage: 200 VAC
- Withstanding Voltage: 500 VAC for 1 min
- Contact Resistance: 20 mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Insulator Material: PAST
- Insulator Flammability Rating: UL94 V-0
- Operating Temperature: -40°C to +105°C
- Assembly Standards: RoHS, REACH, UL Approved
- Package Type: Reel
- Packaging Length: Minimum 100 mm, maximum 400 mm
- Soldering Profile: Preheat 150°C-200°C, Max Ramp-up 3°C/sec, Peak Temp 260°C, Min 60 sec post-peak
- Dimensions: Length varies, typical pin pitch 2 mm, contact length approximately 4 mm
Buy the WURTH 621304284521 – Reliable Dual Pin Connector for Industrial Applications
Secure your electronic assemblies with the high-performance WURTH Dual Pin Header. Designed for effortless PCB mounting, it offers superior conductivity and reliability with gold-plated contacts and a compact design. Rated for 2 A and 200 VAC, it ensures safe operation in industrial environments. Compliant with RoHS, REACH, and UL standards, this reel-packaged connector guarantees easy handling and consistent quality. Enhance your device’s performance with this robust, high-quality connector that ensures long-term safety and dependable connectivity in your electronic projects.
Buy WURTH 621304284521 now and experience unmatched reliability and performance in PCB connection solutions for industrial and automation systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 621304284521?
You can click on the BUY or RFQ button to purchase 621304284521 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 621304284521?
You can download the 621304284521 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 621304284521?
WURTH ELEKTRONIK
