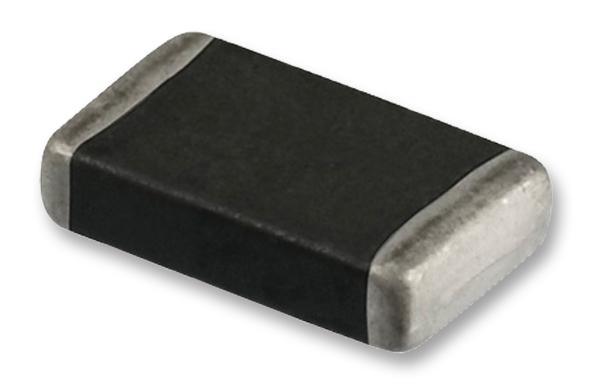

WURTH ELEKTRONIK 82357120100 ESD Suppressor
The 0402 ESD suppressor is a surface-mount device designed to protect sensitive electronic components from electrostatic discharge. Compliant with ROHS standards, it features dimensions optimized for compact PCB layouts and high electrical performance. Its electrical characteristics include a maximum clamping voltage of 12V, typical leakage current of 10 pF capacitance, and it withstands up to 8kV contact discharge. Suitable for high-speed and high-reliability applications, this SMD suppressor ensures effective ESD protection with a response time below 1 nanosecond. It’s ideal for portable devices, communication equipment, and consumer electronics requiring robust electrostatic protection.
WURTH ELEKTRONIK 82357120100 ESD Suppressor Specifications:
- Size: 0402 (Width: 1.0 mm, Length: 0.6 mm)
- Dimensions: Ww 0.5 mm, L 1.0 mm, T 0.25 mm
- Working Voltage: 12 V DC
- Clamping Voltage: 12 V at 8 KV contact discharge
- Leakage Current: 10 pF capacitance, 30% tolerance
- Capacitance: 10 pF typical
- Response Time: Less than 1 nanosecond
- Surge Withstand Voltage: 8 kV contact discharge, 15 kV air discharge
- Temperature Range: -40°C to +85°C
- Storage Temperature: -50°C to +125°C
- Soldering: Max temperature 260°C for 10 seconds
- Body Material: ZnO (Zinc Oxide)
- End Termination: Ag/Ni/Sn
- Compliance: RoHS, IEC61000-4-2 standard
- Packaging: Reel suitable for automatic pick-and-place
- Applicable for portable devices, communication modules, consumer electronics, high-speed circuits, and sensitive equipment.
Buy the Buy Worth Electronics 0402 ESD Suppressor Part Number 82357120100 Online
Secure your electronic devices with the Worth Electronics 0402 ESD suppressor. Designed for high-speed response and robust protection against static discharge, it features a small 0402 size, low leakage current, and high surge withstand capability. This compact, RoHS-compliant component is suitable for portable electronics, communication modules, and sensitive circuits. Easily ordered online, it ensures quick delivery and dependable performance, safeguarding your projects from electrostatic damage with an ultra-fast response time below 1 nanosecond and reliable electrical characteristics.
Order your Worth Electronics series0402 ESD suppressor 82357120100 today and provide your electronics with reliable electrostatic discharge protection.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 82357120100?
You can click on the BUY or RFQ button to purchase 82357120100 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 82357120100?
You can download the 82357120100 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 82357120100?
WURTH ELEKTRONIK
