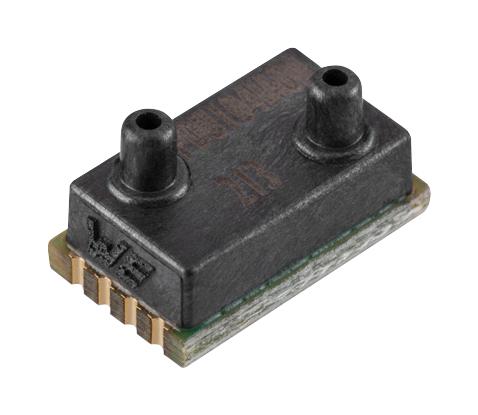

WURTH ELEKTRONIK 2513130810001 Differential Pressure Sensor
The WSEN-PDUS is a differential pressure sensor designed for precise measurement of pressure differences in industrial applications. It features a compact design, high accuracy, and reliable digital and analog outputs suitable for various control and monitoring systems. The sensor operates within a broad temperature range of -25°C to +85°C, with a measurement range up to 70 kPa. It includes digital interface options like I2C, provides high sensitivity, and conforms to RoHS and REACH standards, making it ideal for safety-critical and automated environments.
WURTH ELEKTRONIK 2513130810001 Differential Pressure Sensor Specifications:
- Measurement Range: 0 to 70 kPa
- Temperature Range: -25°C to +85°C
- Supply Voltage: 4.15 V to 5.25 V
- Current Consumption: 4.65 mA
- Sensitivity (digital): 7.63×10^-8 kPa/digit
- Resolution (ADC): 15 bits
- Response Time: 22 ms
- Burst Pressure: 10 kPa
- Long-term Drift: Less than 0.5 %FSS per year
- Operating Pressure: Up to 2500 kPa
- Electrostatic Discharge: ESD protected
- Moisture Sensitivity Level: 1
- Certifications: RoHS, REACH compliant
Buy the WURTH ELEKTRONIK WSEN-PDUS Reliable Differential Pressure Sensor for Industrial Applications
Order the WURTH ELEKTRONIK WSEN-PDUS differential pressure sensor today online to enhance your industrial measurement solutions. This compact sensor offers high accuracy, digital and analog outputs, and proven reliability. Its operating temperature range of -25°C to +85°C and measurement capacity up to 70 kPa make it ideal for safety-critical and automation environments. Features include low power consumption, robustness, and compliance with RoHS and REACH standards, ensuring quality and environmental safety for your industrial control systems.
Buy WURTH ELEKTRONIK WSEN-PDUS now and experience unmatched reliability and high-precision pressure measurement for industrial automation.
