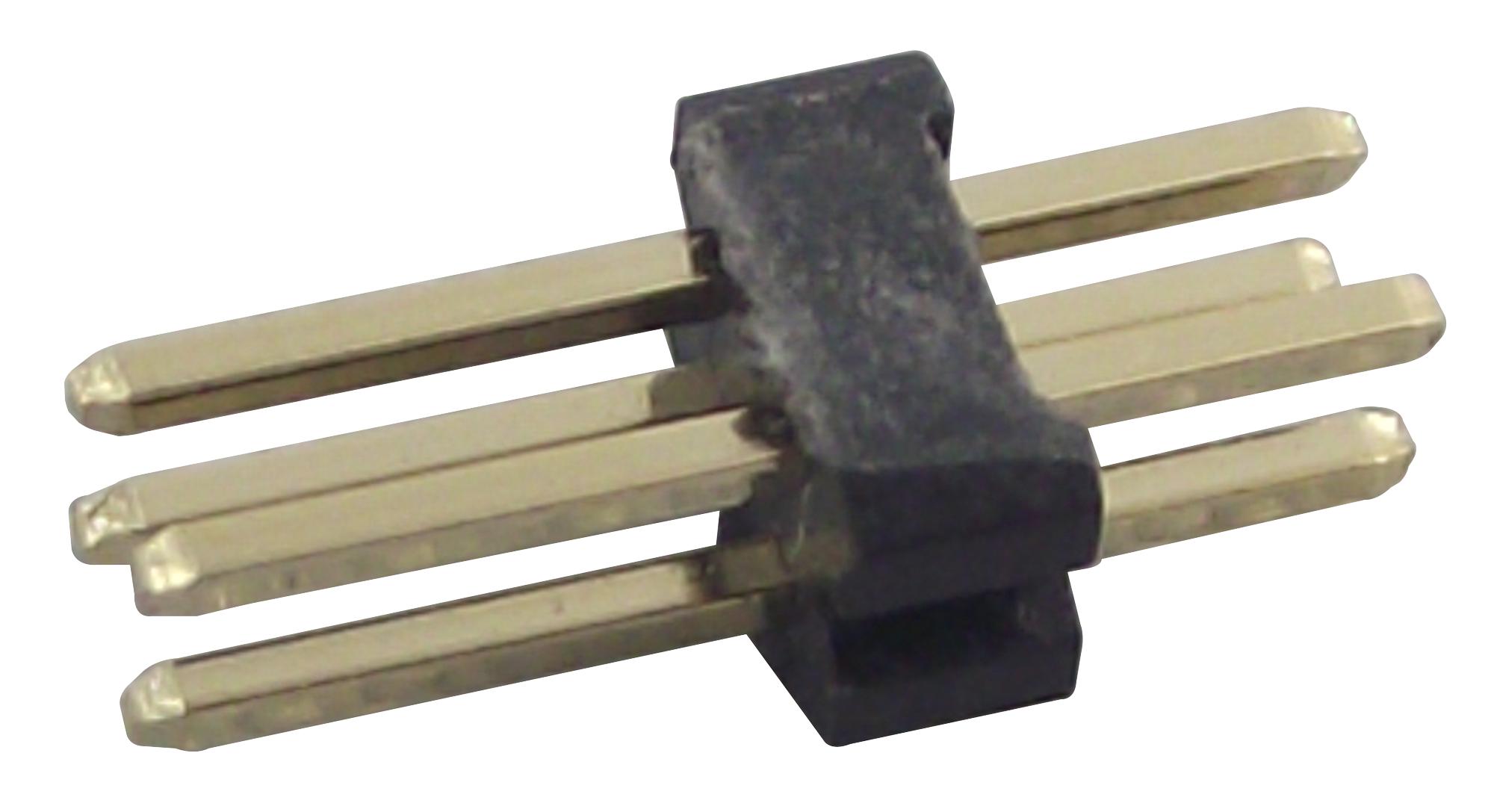

WURTH ELEKTRONIK 62201621121 Dual Pin Connector
The WURTH WR-PHD THT Straight Dual Pin is a versatile electronic connector designed for reliable soldering and high-temperature operation. Crafted with copper alloy contacts plated with gold, it supports up to 500 mating cycles and operates efficiently within -40°C to +105°C. The connector features a 1.27 mm pitch, 16 pins, and a robust design suitable for general electronic equipment, ensuring durability, precise connections, and compliance with RoHS and UL standards for high safety and reliability in various industrial applications.
WURTH ELEKTRONIK 62201621121 Dual Pin Connector Specifications:
- Pins: 16
- Pin to Pin (Middle): 8.89 mm
- Length L: 10.16 mm
- Pitch P: 1.27 mm
- Durability: 500 mating cycles
- Insulator Material: PAST
- Insulator Flammability Rating: UL94V-0
- Insulator Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Rated Current Ip: 1 A
- Working Voltage: 100 V
- Withstanding Voltage: 500 V, 1 min
- Contact Resistance: 20 mo max
- Insulation Resistance: 1000 Mo min
- Operating Temperature: -40°C to +105°C
- Certification: RoHS, REACh, UL
Buy the WURTH 62201621121 – Reliable Dual Pin Connector for Industrial Applications
Purchase the WURTH 62201621121 dual pin connector online today for a high-quality, durable, and reliable connection solution. Designed with gold-plated contacts and a 1.27 mm pitch, it supports 16 pins and endures up to 500 mating cycles, making it ideal for industrial electronics. Operating effectively within -40°C to +105°C, this connector ensures safe, precise, and long-lasting electrical connections. Perfect for general electronic equipment, it complies with RoHS, UL, and REACh standards, guaranteeing safety and environmental standards. Order now for fast delivery and superior performance in your projects.
Get WURTH 62201621121 today—built for precision with high durability and safe operation in industrial and electronic equipment.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 62201621121?
You can click on the BUY or RFQ button to purchase 62201621121 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 62201621121?
You can download the 62201621121 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 62201621121?
WURTH ELEKTRONIK
