WURTH ELEKTRONIK 658807713040 SMT Connector

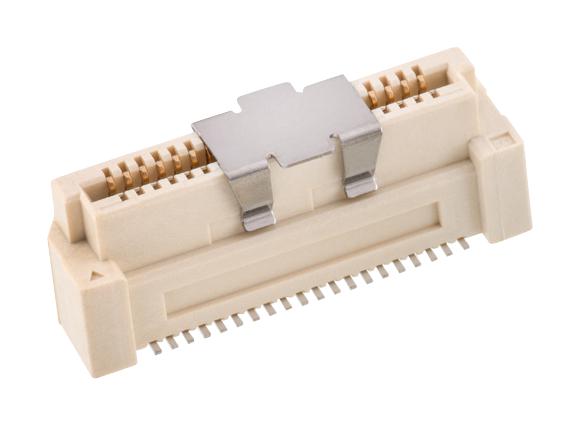

This 0.80mm SMT female shrouded vertical receptacle with chamfer from Wirth Elektronik is designed for precise PCB connections. Featuring a height of 7.75mm, it ensures reliable contact for signal and power applications in compact electronic systems. Made with copper alloy contacts and selective gold plating, it offers excellent electrical performance with rated current of 0.5A and working voltage of 50V. Compliance with UL94 V-0 flammability rating and RoHS standards guarantees safety and environmental friendliness. Suitable for various low-current, high-density electronic assembly needs with robust durability for repeated mating cycles.
WURTH ELEKTRONIK 658807713040 SMT Connector Specifications:
- Pitch: 0.8 mm
- Number of Pins: 40
- Pin to Pin (Middle): 15.2 mm
- Length L: 21.8 mm
- Length rm: 20.2 mm
- Height: 7.75 mm
- Material: Copper Alloy
- Insulator Material: cP (Polymer)
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Ivory
- Rated Current: 0.5 A
- Working Voltage: 50 V (AC)
- Max Withstanding Voltage: 500 V (1 min)
- Contact Resistance: 50 mΩ max
- Insulation Resistance: 100 MΩ min
- Durability: 30 mating cycles
- Temperature Range: -55°C to +85°C
- RoHS and lead-free compliant
Buy the Buy Wirth Elektronik 0.80mm SMT Female Shrouded Part Number 658807713040 Online
Secure your electronic assemblies with Wirth Elektronik's 0.80mm SMT female shrouded connector. Designed with gold-plated contacts for excellent electrical conductivity, rated at 0.5A and 50V, it provides reliable and durable connections in compact designs. Compliant with UL94 V-0 and RoHS standards, this component ensures safety and environmental compliance. Its easy-to-mate design supports up to 30 mating cycles, making it ideal for high-density applications requiring precise PCB interconnects. Purchase online now for efficient and safe electronic manufacturing.
Buy Wirth Elektronik 0.80mm SMT Female Shrouded connector now and experience reliable PCB connections with high durability and safety standards.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 658807713040?
You can click on the BUY or RFQ button to purchase 658807713040 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 658807713040?
You can download the 658807713040 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 658807713040?
WURTH ELEKTRONIK
