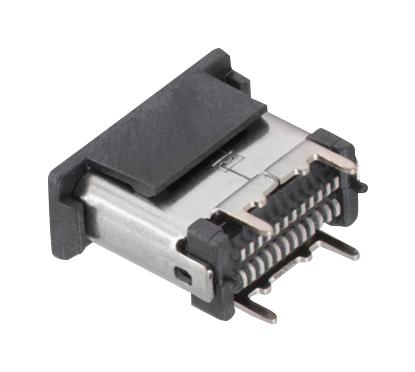

WURTH ELEKTRONIK 632722110112 USB Connector
The USB 3.1 Vertical SMT connector from Würth Elektronik offers reliable high-speed data transfer with a compact vertical surface-mount design suitable for electronic devices and industrial applications. It features gold-plated copper contacts, stainless steel shielding, and a durable insulator rated UL94 V-0. Designed for efficient PCB integration, it supports up to 5 A rated current, withstands high operational temperatures, and meets RoHS compliance standards. Ideal for robust electronic systems requiring high reliability and secure connections.
WURTH ELEKTRONIK 632722110112 USB Connector Specifications:
- Type: USB 3.1 Vertical SMT
- Number of Pins: 24
- Rated Current: 5 A
- Contact Material: Copper Alloy with Gold over Nickel plating
- Shielding Material: Stainless Steel with Nickel plating
- Insulator Material: Black, UL94 V-0 rated
- Operating Temperature: -40°C to +85°C
- Contact Resistance: Max 40 mΩ
- Withstanding Voltage: 100 V (AC, 1 min)
- Insulation Resistance: Min 100 MΩ
- RoHS Compliant: Yes
- Durability: 10,000 mating cycles
- Insertion Force: 5N-20N
- Extraction Force (initial): 8N-20N
- Material: Copper alloy, stainless steel
- Packaging: Reel, compliant with IEC 60286-3:2019
- Storage Conditions: 12 months maximum, avoid direct sunlight
Buy the Würth Elektronik 632722110112 – Reliable USB 3.1 for Industrial Applications
Purchase the Würth Elektronik USB 3.1 Vertical SMT connector online today—engineered for high-speed data transfer, reliability, and secure connections in industrial-grade electronics. With gold-plated contacts and stainless steel shielding, this assembly ensures durability and excellent electrical performance. Ideal for designers and manufacturers requiring a compact, high-current rated module, it supports up to 5 A and withstands harsh operating environments. Order now to benefit from fast shipping, trusted quality, and seamless integration into your electronic projects and systems.
Get Würth Elektronik 632722110112 today—built for precision and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 632722110112?
You can click on the BUY or RFQ button to purchase 632722110112 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 632722110112?
You can download the 632722110112 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 632722110112?
WURTH ELEKTRONIK
