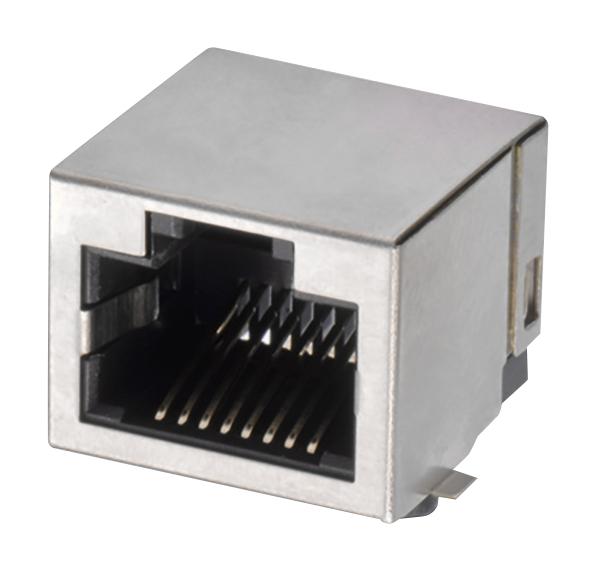

WURTH ELEKTRONIK 634008149821 Shielded Modular Jack
The shielded SMT modular jack offers reliable connectivity with a durable copper alloy contact material, gold plating, and nickel-plated brass shielding. Designed for use in electronic equipment, it supports a working voltage of 120 V AC, rated current of 1.5 A, and withstands voltages of up to 1000 V AC for 1 minute. Operating within -40°C to +85°C, it ensures high performance in demanding environments. Compliant with RoHS and REACh standards, this connector features 8 pins, stamped contacts, and UL94 V-0 flammability rating, making it suitable for versatile industrial applications.
WURTH ELEKTRONIK 634008149821 Shielded Modular Jack Specifications:
- Number of Pins: 8
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Shielding Material: Brass
- Shielding Plating: Nickel (Ni)
- Rated Current: 1.5 A
- Working Voltage: 120 V (AC)
- Withstanding Voltage: 1000 V (AC) for 1 min
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 500 MΩ min
- Operating Temperature: -40°C to +85°C
- Flammability Rating: UL94 V-0
- Certifications: RoHS, REACh Compliant
- Contact Type: Stamped
- Num. of Mating Cycles: 500
- Certifications: UL Approved
Buy the Buy WURTH ELEKTRONIK Shielded SMT 8P8C Tab Up Part Number 634008149821 Online
Purchase the WURTH ELEKTRONIK shielded modular jack online today for durable, reliable electronic connections. Designed with gold contacts and nickel-plated brass shielding, it supports 1.5 A current and 120 V AC voltage, ensuring dependable performance in demanding environments. Its robust construction offers 500 mating cycles, operating safely from -40°C to +85°C. Ideal for industrial, communication, and networking applications, this connector is RoHS and REACh compliant, providing long-lasting, high-quality connectivity for your electronic projects.
Get WURTH ELEKTRONIK 634008149821 today—built for high reliability, safety, and versatile electronic connectivity solutions.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 634008149821?
You can click on the BUY or RFQ button to purchase 634008149821 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 634008149821?
You can download the 634008149821 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 634008149821?
WURTH ELEKTRONIK
