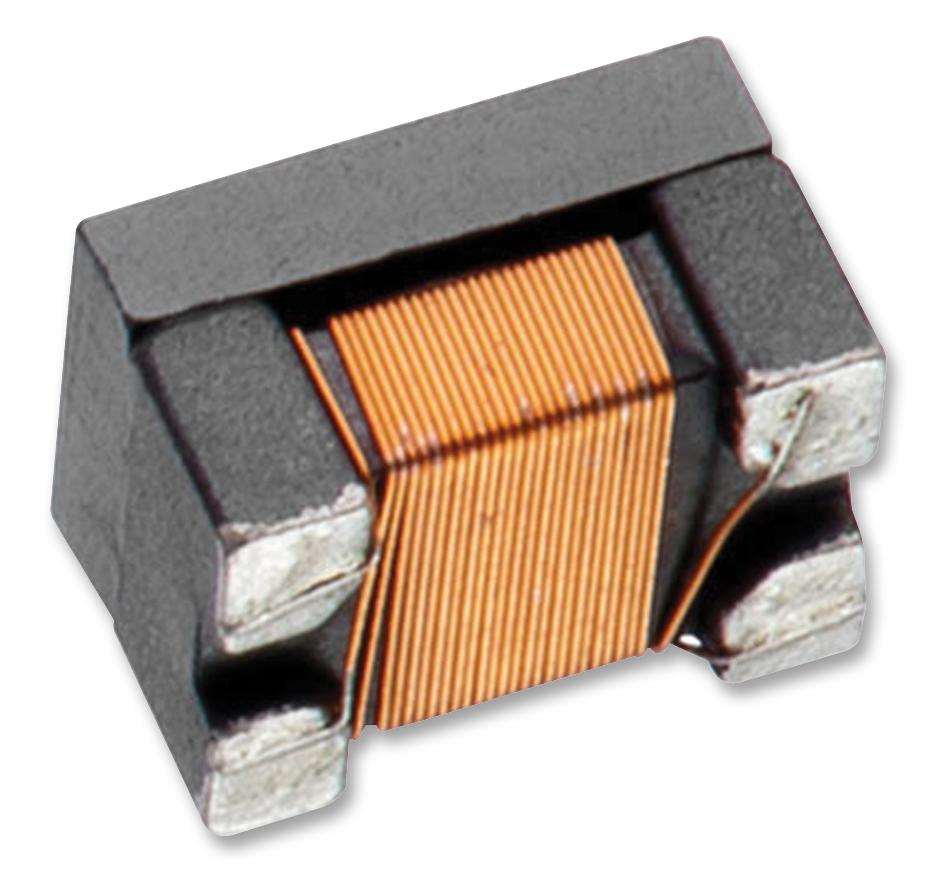

WURTH ELEKTRONIK 744235220 Line Filter
The Wurth Electronics WE-CNSW series offers high suppression of common mode EMI noise at high frequencies without affecting data signal integrity. Available in standard and high-frequency versions, these filters come in various sizes including 0603, 0805, 1206, and 1812, with operational frequencies from 10 MHz to 1 GHz. The HF series features smaller packages 0504 and 0805, suitable for frequencies up to 4 GHz. These current-compensated filters are ideal for high-speed data lines such as IEEE 1394 (Firewire). Operating within -40°C to +125°C, they ensure reliable noise suppression with minimal impact on data signals, suitable for various electronic applications including industrial and communication systems.
WURTH ELEKTRONIK 744235220 Line Filter Specifications:
- Package Sizes: 0504, 0603, 0805, 1206, 1812
- Operational Frequency Range: 10 MHz to 4 GHz
- Impedance (typical): 8000 Q at 100 MHz
- Rated Current: 250 mA max at 40K IR
- DC Resistance: 2.65 Q max
- Insulation Test Voltage: 125 V AC max
- Rated Voltage: 50 V
- Temperature Range: -40°C to +125°C
- Reflow Soldering: Compatible
- Signal Type: Data lines, high-frequency EMI suppression
- Application: EMI noise reduction in high-speed electronic signals, IEEE 1394 (Firewire), industrial and communication equipment
Buy the Wurth Electronics 744235220 – Reliable EMI Line Filter for Industrial Applications
Purchase the Wurth Electronics WE-CNSW Series line filter now to ensure your electronic devices have excellent EMI noise suppression at high frequencies. Designed for reliable performance in industrial, communication, and high-speed data applications, these filters come in various package sizes including 0504, 0603, 0805, 1206, and 1812, with frequency ranges up to 4 GHz. They feature high impedance, low resistance, and are suitable for reflow soldering. Protect your circuits from high-frequency EMI, improve signal integrity, and ensure compliance with industry standards by ordering online today.
Order your Wurth Electronics series 744235220 line filter today and enhance your electronic circuit's noise immunity with proven high-frequency suppression.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 744235220?
You can click on the BUY or RFQ button to purchase 744235220 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 744235220?
You can download the 744235220 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 744235220?
WURTH ELEKTRONIK
