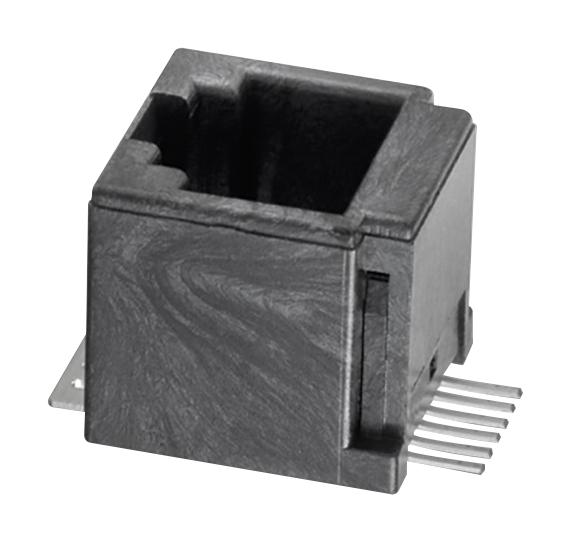

WURTH ELEKTRONIK 634108149621 Modular Jack
The WR-MJ Modular Jack is a high-quality, plastic SMT component with a soldering tab, designed for reliable electronic connections in industrial and consumer electronic devices. It features durable copper alloy contacts with selective gold plating, supporting up to 500 mating cycles. The jack operates within -40°C to +85°C, with a rated current of 1.5A and a working voltage of 120V AC. Certified RoHS, REACH, and halogen-free, it ensures safety and compliance for broad electronic applications, providing stable, long-lasting performance in various environments.
WURTH ELEKTRONIK 634108149621 Modular Jack Specifications:
- Number of Pins: 8P8C
- Operating Temperature: -40°C to +85°C
- Rated Current: 1.5A
- Working Voltage: 120V AC
- Withstanding Voltage: 1000V AC for 1 min
- Contact Resistance: Max. 20 mΩ
- Insulation Resistance: Min. 500 MΩ
- Contact Material: Copper Alloy
- Contact Plating: Selective Gold
- Insulator Material: Plastic
- Flammability Rating: UL94 V-0
- Durability: 500 Mating Cycles
- Certification: RoHS, REACH, Halogen-Free
- Package Type: Tape and Reel, Mylar
- Soldering: SMT with Soldering Tab
- Dimensions: Standard 8P8C configuration
Buy the Buy WURTH ELEKTRONIK Modular Jack Part Number 634108149621 Online
Purchase the WURTH ELEKTRONIK Modular Jack online now to benefit from its high durability, gold-plated contacts, and easy SMT assembly. This versatile connector supports 8P8C configurations, ideal for reliable electronic connections in industrial, telecom, and consumer devices. Certified RoHS and halogen-free, ensuring safety and environmental compliance. Its robust design offers up to 500 mating cycles, making it suitable for demanding applications. Secure your inventory and enjoy fast shipping, competitive pricing, and quality assurance by ordering this high-performance modular jack today.
Get WURTH ELEKTRONIK 634108149621 today—built for easy integration, long-lasting durability, and reliable network connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 634108149621?
You can click on the BUY or RFQ button to purchase 634108149621 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 634108149621?
You can download the 634108149621 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 634108149621?
WURTH ELEKTRONIK
