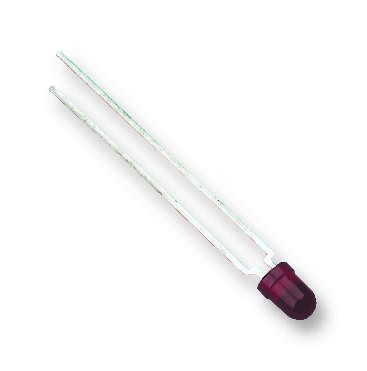

WURTH ELEKTRONIK 151031SS04000 Mono-color Round LED
The WURTH ELEKTRONIK 151031SS04000 is a compact, through-hole (THT) mono-color round LED designed for general electronic equipment. This LED offers a super red emitting color with a typical luminous intensity of 140 mcd. It is suitable for indicator lights, displays, and other lighting applications. The component is RoHS compliant and operates within a temperature range of -40°C to +85°C. Würth Elektronik emphasizes that this product is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 151031SS04000 Mono-color Round LED Specifications:
- Dimensions: 2.54 typ, 3.0 ±0.25, 3.95 ±0.25, 25.4 ±0.25, 1.0 min
- Recommended Hole Pattern: 2.54, O 1.0
- Power Dissipation: 75 mW
- Peak Forward Current: 100 mA (at 1 kHz)
- Continuous Forward Current: 30 mA
- Reverse Voltage: 5 V
- ESD Threshold (HBM): 2000 V
- Chip Technology: AlInGaP
- Emitting Color: Super Red
- Lens Type: Color diffused
- Operating Temperature: -40 up to +85 °C
- Storage Conditions: < 40 °C ; < 75 % RH
- Moisture Sensitivity Level (MSL): 1
- Peak Wavelength: 640 nm
- Dominant Wavelength: 635 nm
- Luminous Intensity: 120-160 mcd
- Forward Voltage: 2-2.4 V
- Spectral Bandwidth: 17 nm
- Reverse Current: 10 µA
- Viewing Angle: 40°
