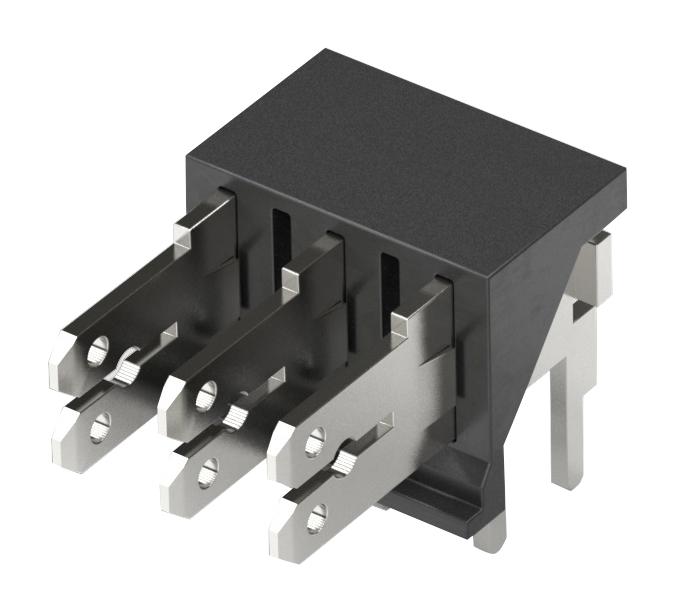

WURTH ELEKTRONIK 638207122008 Header Connector
The WURTH ELEKTRONIK right-angled header blade is a durable component designed for reliable electrical connections in electronic systems. Made with tin-plated steel contacts and a black insulator, it supports up to 16 A current and 300 V working voltage. The part features a 5.08 mm pitch, 500 mating cycle durability, and UL94 V-0 flammability rating, ensuring safety and longevity. Suitable for various electronic projects, this header offers precise pin-to-pin spacing of 35.56 mm and withstands operating temperatures from -30°C to +120°C, making it ideal for industrial automation and wiring applications.
WURTH ELEKTRONIK 638207122008 Header Connector Specifications:
- Pitch P: 5.08 mm
- Contact Material: Steel
- Contact Plating: Tin
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Color: Black
- Durability: 500 mating cycles
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 MΩ
- Withstanding Voltage: 1600 V (AC) for 14 min
- Contact Resistance: 20 mΩ
- Operating Temperature: -30°C to +120°C
- Pin to Pin (Middle): 35.56 mm
- Length: 30.68 mm
- Soldering Profile: Sn-Pb and Pb-Free compatible, peak temp 250-260°C
- RoHS, REACH, cULus, Glow Wire approvals
Buy the WURTH ELEKTRONIK 638207122008 – Reliable Header for Industrial Applications
Secure your electronic connections with the WURTH ELEKTRONIK header connector, designed for durability and precision in industrial applications. With a 5.08 mm pitch, high mating cycle durability, and rated for 16 A at 300 V, it offers reliable performance in automation and wiring projects. The black PC insulator and tin-plated steel contacts ensure longevity and safety meeting UL94 V-0 standards. Easy to install and suitable for a variety of environments, this connector guarantees robust, secure electrical connections in demanding industrial and electronic systems.
Order your WURTH ELEKTRONIK 638207122008 right-angled header today and ensure your electronic projects have dependable, high-quality connections for industrial systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 638207122008?
You can click on the BUY or RFQ button to purchase 638207122008 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 638207122008?
You can download the 638207122008 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 638207122008?
WURTH ELEKTRONIK
