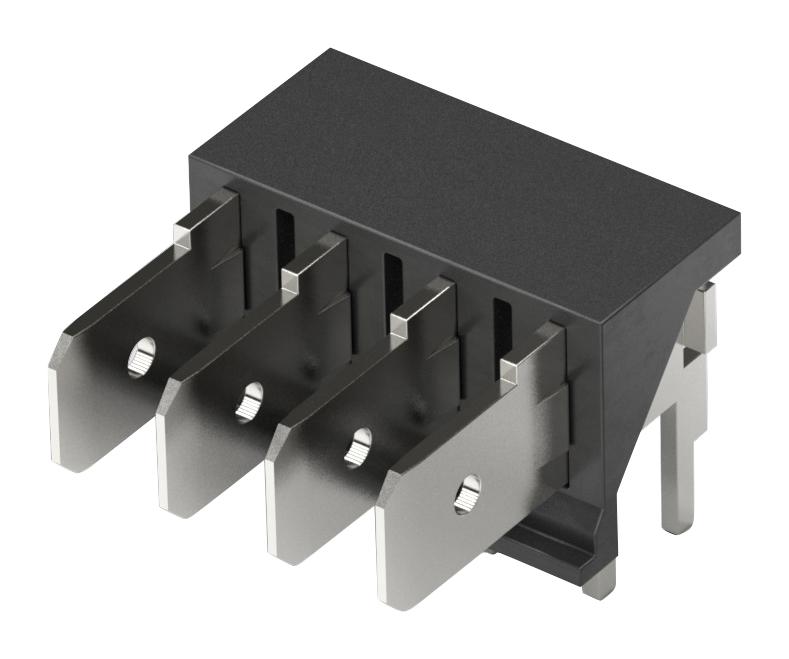

WURTH ELEKTRONIK 638263122008 Right Angled Header Connector
The WR-FAST Male Right Angled Header Blade 6.3 is a high-reliability connector suitable for electronic assembly and industrial applications. Constructed with a steel contact and tin plating, it features a 5.08 mm pitch and durability for 500 mating cycles. Designed for wave soldering with specific preheat and peak temperature profiles, it ensures optimal solder joints. The insulator is made of black PC with UL94 V-0 flammability rating, supporting rated current of 16 A and working voltage of 300 V. Suitable for robust electronic interconnections, it complies with RoHS, REACh, and IEC standards, ensuring safety and quality in professional use.
WURTH ELEKTRONIK 638263122008 Right Angled Header Connector Specifications:
- Contact Material: Steel
- Contact Plating: Tin
- Insulator Material: PC
- Insulator Flammability Rating: UL94 V-0
- Color: Black
- Durability: 500 mating cycles
- Pitch P: 5.08 mm
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 Mo
- Withstanding Voltage: 1600 V (AC) for 14 min
- Contact Resistance: 20 mo
- Operating Temperature Range: -30°C to +120°C
- Soldering Profile: Wave soldering, max peak temp 260°C, preheat 100°C - 130°C, time 70 sec
- Compliance: RoHS, REACh, IEC 60335-1, UL Listed
Buy the Wurth Elektronik Series Connectors: WR-FAST Male Right Angled Header Blade 6.3
Order the Wurth Elektronik WR-FAST Male Right Angled Header Blade 6.3 online today to enjoy superior build quality and reliable electrical performance. Designed for wave soldering with optimal profiles, this connector ensures durable connections for industrial equipment and electronic assemblies. Its steel contacts with tin plating support 16A current capacity and 300V voltage, meeting international safety standards. Perfect for precise soldering and robust applications, buy now and enhance your projects with trusted connectivity solutions.
Buy Wurth Elektronik WR-FAST Male Right Angled Header Blade 6.3 now and experience unmatched reliability and precise electronic connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 638263122008?
You can click on the BUY or RFQ button to purchase 638263122008 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 638263122008?
You can download the 638263122008 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 638263122008?
WURTH ELEKTRONIK
