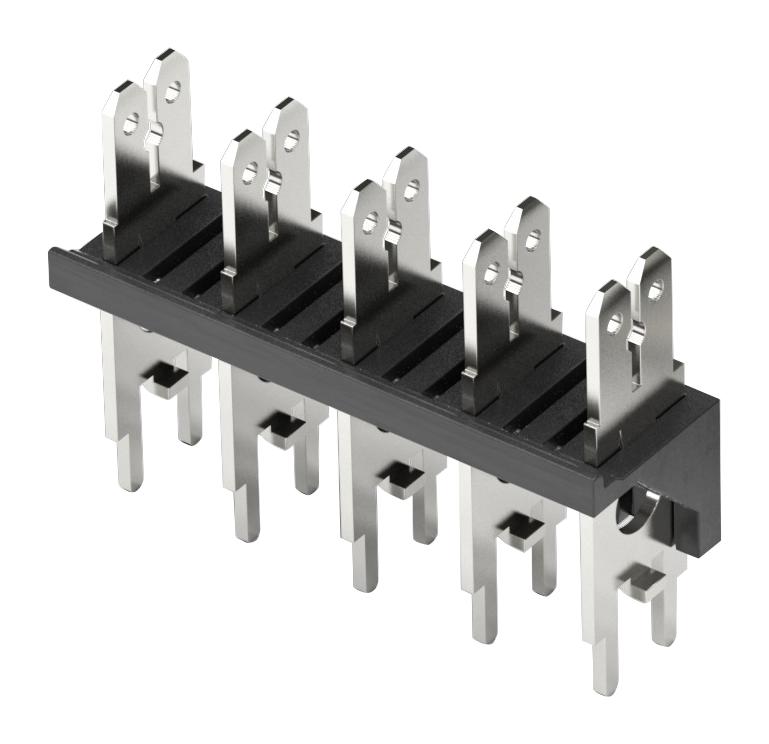

WURTH ELEKTRONIK 638307222002 Male Vertical Header
The Würth Elektronik WR-FAST 638307222002 is a male vertical header designed for reliable connections in general electronic equipment. It boasts a 7.62mm pitch, providing ample spacing for signal transmission. The header's tin-plated contacts ensure excellent conductivity and corrosion resistance. Constructed with a UL94 V-0 rated insulator, it offers enhanced fire safety. This component is ideal for applications requiring secure and dependable terminal block connections, contributing to the overall performance and safety of electronic devices. It is not intended for use in safety-critical applications without proper evaluation.
WURTH ELEKTRONIK 638307222002 Male Vertical Header Specifications:
- Pins: 2
- Length L: 11.74 mm
- Pitch: 7.62 mm
- Material (Insulator): PC
- Flammability Rating: UL94 V-0
- Contact Material: Steel
- Contact Plating: Tin
- Durability: 500 Mating cycles
- Operating Temperature: -30 up to +120 °C
- Rated Current: 16 A
- Working Voltage: 300 V (AC)
- Insulation Resistance: 5 MΩ
- Withstanding Voltage: 1600 V (AC)
- Contact Resistance: 20 mΩ
- RoHS Approval: Compliant
- REACH Approval: Conform
- Glow Wire Approval: Compliant
- cULus Approval: E150931
