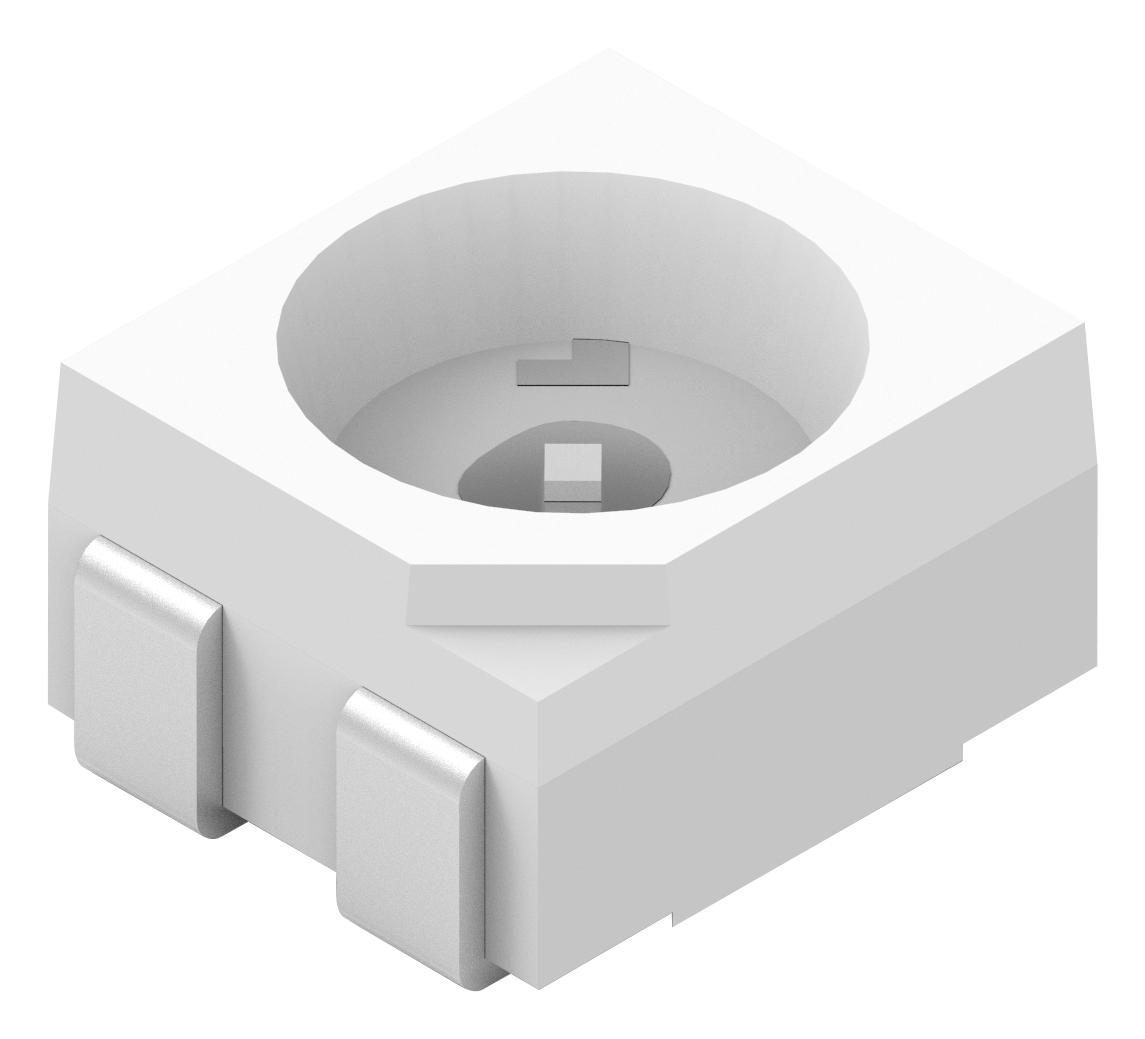

WURTH ELEKTRONIK 150141GS73130 SMT Mono-color Top LED
The Würth Elektronik 150141GS73130 is a surface-mount technology (SMT) mono-color top LED featuring a green emitting color and a PLCC4 package with a common anode configuration. Designed for general electronic equipment, this LED offers a luminous intensity ranging from 2200 to 5000 mcd, a peak wavelength of 515nm, and a dominant wavelength of 520nm. It operates reliably within an ambient temperature range of -40°C to +85°C and is compliant with RoHS standards. The LED's construction includes an InGaN chip, a waterclear lens, and a white plastic housing, making it suitable for a wide range of lighting and indication applications. It is not intended for use in safety-critical applications without proper evaluation and agreement.
WURTH ELEKTRONIK 150141GS73130 SMT Mono-color Top LED Specifications:
- Recommended Land Pattern: 1.7 x 4 x 1 x 1
- Power Dissipation: 360 mW
- Peak Forward Current: 100 mA @ 1 kHz
- Continuous Forward Current: 50 mA
- Reverse Voltage: 5 V
- ESD Threshold Human Body: 1000 V
- Junction Temperature: 120 °C
- Chip Technology: InGaN
- Emitting Color: Green
- Lens Type: Waterclear
- Plastic Housing Color: White
- Operating Temperature: -40°C to +85°C
- Storage Conditions (Original Packaging): < 40°C ; < 75% RH
- Storage Conditions (Single Parts): -40°C to +100°C
- Moisture Sensitivity Level (MSL): 3
- Peak Wavelength: 515 nm
- Dominant Wavelength: 520 nm
- Luminous Intensity: 2200-5000 mcd
- Forward Voltage: 3.2-3.6 V
- Spectral Bandwidth: 40 nm
- Reverse Current: 10 µA
- Viewing Angle: 120°
- RoHS Approval: Compliant
- REACh Approval: Conform
- Halogen Free: Conform
