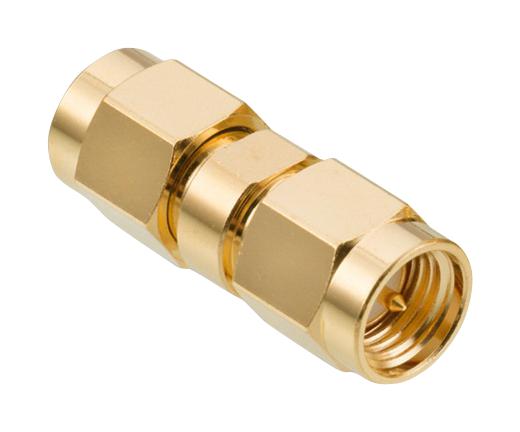

WURTH ELEKTRONIK 64430203211000 SMA Plug to SMA Plug Adaptor
The Würth Elektronik WR-ADPT is a high-quality SMA plug to SMA plug coaxial adaptor designed for reverse polarity applications in a variety of electronic systems. Constructed with a brass body and gold-plated contacts over nickel, this adaptor provides excellent signal integrity and corrosion resistance. The PTFE insulator and silicone gasket ensure reliable performance in demanding environments. Suitable for general electronic equipment, this adaptor is RoHS compliant and offers a secure and reliable connection for RF signals. It is not intended for use in safety-critical applications without prior written approval from Würth Elektronik.
WURTH ELEKTRONIK 64430203211000 SMA Plug to SMA Plug Adaptor Specifications:
- Insulator Material: PTFE
- Insulator Color: White
- Center Contact Material: Beryllium Copper
- Center Contact Plating: Gold, min. 0.76µm over Nickel
- Body Material: Brass
- Body Plating: Gold, min. 0.076µm over Nickel
- Coupling Nut Material: Brass
- Coupling Nut Plating: Gold, min. 0.076µm over Nickel
- Retention Ring Material: Stainless Steel
- Retention Ring Plating: Passivated
- Gasket Material: Silicone
- Gasket Color: Red
- Interface: MIL-STD-348
- Connector Type 1: RP SMA
- Gender 1: Plug
- Connector Type 2: SMA
- Gender 2: Plug
- Operating Temperature: -65 °C up to +165 °C
- Compliance: RoHS
- Insertion Loss: 0.16 dB (max.) at DC~18 GHz
- Insulation Resistance: 5000 MΩ min. at 500 V (DC) in 120 sec.
- Contact Resistance Initial: 3 mΩ max.
- Contact Resistance After Test: 4 mΩ max.
- Withstanding Voltage: 1000 V (RMS) min.
- Working Voltage: 335 V (RMS) min.
- Center Contact Retention (Axial): 26.7 N min.
- Mating Cycle: 500 Cycles
- Coupling Nut Retention: 267 N min.
- Recommended Mating Torque: 57 Ncm
- Impedance: 50 Ω
- Frequency Range: DC~18 GHz
- VSWR: 1.3 max. at DC~18 GHz
