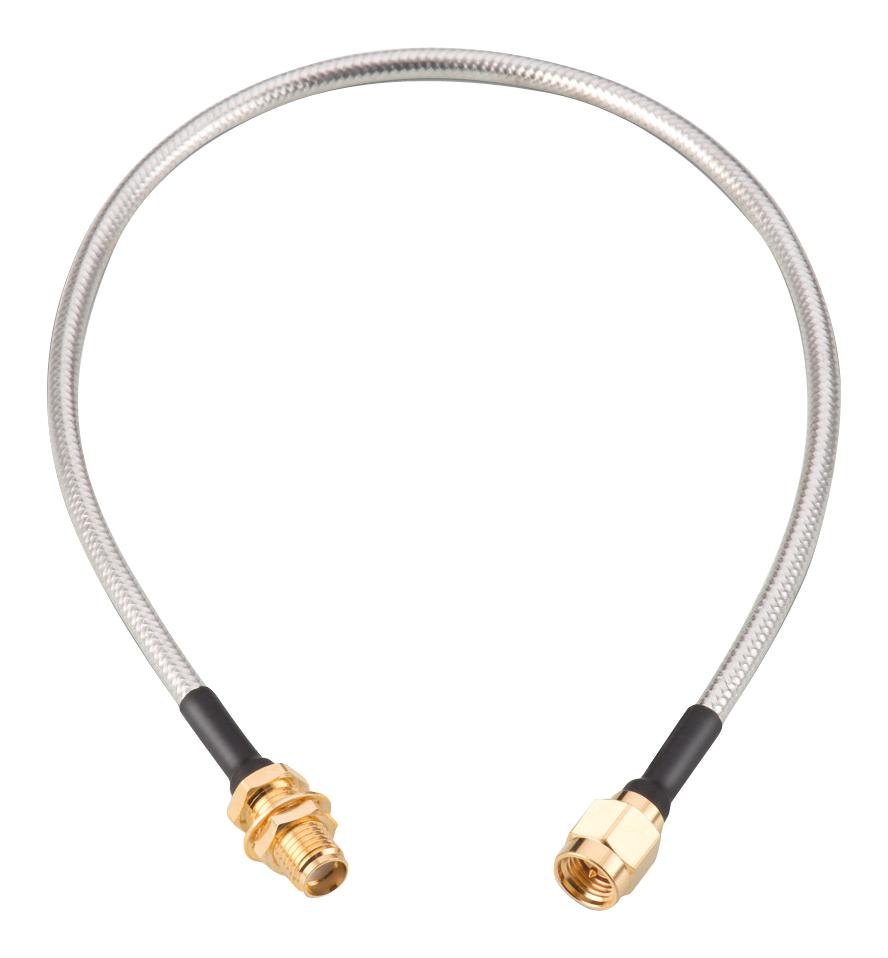

WURTH ELEKTRONIK 65503503215307 RF SMA Connector
This SMA straight plug to bulkhead jack connector features a hand-formable cable type, PTFE insulator, and gold-plated beryllium copper contacts. Designed for RF applications, it operates over a frequency range of DC to 18 GHz with an impedance of 50 ohms, offering low insertion loss and VSWR. Suitable for high-frequency signal transmission with excellent mechanical and electrical properties, this connector is ideal for precise, high-frequency electronic equipment requiring reliable connections and durability in various operational environments.
WURTH ELEKTRONIK 65503503215307 RF SMA Connector Specifications:
- Connector Type: SMA straight plug to SMA bulkhead jack
- Cable Type: Hand-Formable, .141 WR-CXASY
- Insulator Material: PTFE
- Insulator Color: White
- Center Contact Material: Beryllium Copper
- Center Contact Plating: Gold, minimum 0.76 μm over Nickel
- Body Material: Brass
- Body Plating: Gold, minimum 0.076 μm over Nickel
- Coupling Nut Material: Brass, Gold-plated, minimum 0.076 μm
- Retention Ring Material: Stainless Steel, Passivated
- Gasket Material: Silicone, Red
- Heat Shrink Tube Material: PE, Black
- Impedance: 50 Ω
- Frequency Range: DC to 18 GHz
- VSWR: Max 1.3
- Insertion Loss: Max 0.67 dB at 18 GHz
- Insulation Resistance: 5000 MΩ at 500 V DC in 120 sec
- Withstanding Voltage: 1000 V RMS for 60 sec
- Working Voltage: 335 V RMS
- Mechanical Retention (Center Contact): Min 26.7 N
- Mating Cycles: 500
- Recommended Mating Torque: 57 N·cm
- Min. Bend Radius: 10 mm
- Cable Retention Force: Min 89 N
- Operating Temperature: -65°C to +165°C
- Compliance: RoHS
- Packaging: Bag, 10 pieces
Buy the Buy Wirth Elektronik SMA Connector Part Number 65503503215307 Online
Purchase the high-quality RF SMA connector from Wirth Elektronik today. This durable, gold-plated connector is designed for RF applications operating up to 18 GHz, ensuring low signal loss and excellent electrical performance. Its robust construction, including PTFE insulator and stainless steel retention ring, provides reliability and durability in demanding environments. Perfect for precise signal transmission, these connectors are ideal for high-frequency electronic systems requiring secure and stable connections. Buy online now for fast delivery and trusted quality.
Get Wirth Elektronik SMA connector part number 65503503215307 today—designed for high-frequency RF applications with durable gold-plated contacts and reliable performance.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503215307?
You can click on the BUY or RFQ button to purchase 65503503215307 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503215307?
You can download the 65503503215307 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503215307?
WURTH ELEKTRONIK
