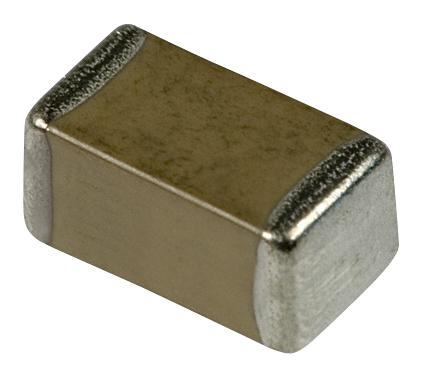

WURTH ELEKTRONIK 885342209009 Ceramic Capacitor
The WURTH ELEKTRONIK WCAP-CSMH series ceramic capacitors are designed for general electronic equipment applications. These capacitors offer a compact 1210 size and utilize an X7R dielectric, providing stability over temperature. They are characterized by a rated voltage of 2000V DC and are suitable for a wide range of applications where reliable capacitance is required. The components are RoHS compliant and meet industry standards for safety and performance. Proper soldering techniques and adherence to the recommended reflow profile are essential for optimal performance and reliability.
WURTH ELEKTRONIK 885342209009 Ceramic Capacitor Specifications:
- Dimensions L (mm): N/A
- Dimensions H (mm): 1.25
- Tol. (mm): ±0.3, ±0.2, ±0.1, ±0.25
- Recommended Land Pattern pl1 (mm): 0.75
- Recommended Land Pattern pl2 (mm): 2.2
- Recommended Land Pattern fw (mm): 2.5
- Capacitance: 1 nF
- Rated Voltage (DC): 2000 V
- Dissipation Factor: 2.5 %
- Insulation Resistance: 10 GΩ
- Ceramic Type: X7R Class II
- Temperature Coefficient: ± 15 % max.
- Storage Conditions: 5-35 °C, < 75% RH
- Operating Temperature: -55 °C up to +125 °C
- Dielectric Strength: 15 sec. @120 % UR; Charge & Discharge Current <50 mA
- Termination: Cu/ Ni/ Sn
- Adhesive Strength of Termination: ≤ 0603: 10 ±1 sec; 5 N, > 0603: 10 ±1 sec; 10 N
- Vibration Resistance: 50 Hz/ min., amplitude 0.75 mm
- Resistance to Solder Heat: Refer to Soldering Profile
- Size: 1210
- Revision: 001.000
- Status: Valid
- Date: 2016-09-19
- Business Unit: eiCap
- Page: 1/7
