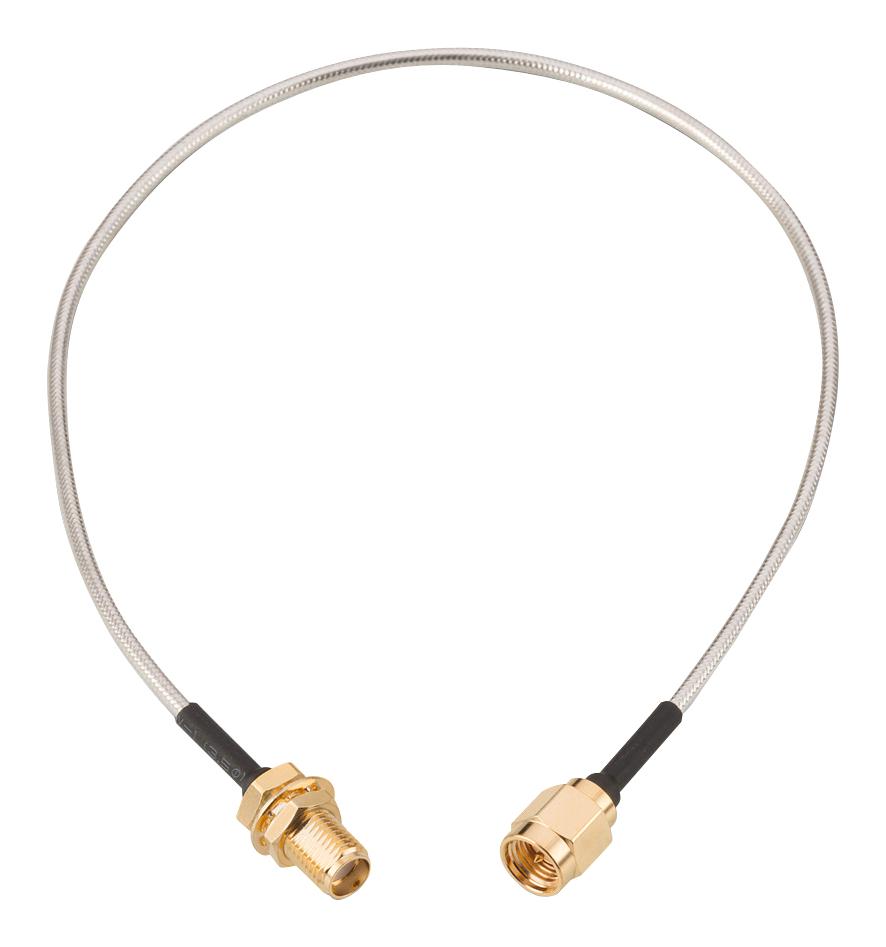

WURTH ELEKTRONIK 65503503215308 RF Connector
This SMA straight plug and bulkhead jack connector is designed for high-frequency applications, supporting DC to 18 GHz with impedance of 50 ohms. Made of brass with gold over nickel plating, it features PTFE insulator and Beryllium Copper center contact plated with gold. Suitable for hand-formable cables with a diameter of .085 WR-CXASY, it offers excellent electrical performance, mechanical durability, and operating temperature range from -65°C to +165°C. The connector ensures reliable performance in RF, communication, and testing systems, with a mating cycle of 500 cycles and precise impedance matching.
WURTH ELEKTRONIK 65503503215308 RF Connector Specifications:
- Impedance: 50 Ω
- Frequency Range: DC to 18 GHz
- Center Contact Material: Beryllium Copper, Gold plated, min. 0.76μm over Nickel
- Body Material: Brass with Gold, min. 0.076μm over Nickel plating
- Insulator Material: PTFE, White
- Max Operating Temperature: -65°C to +165°C
- Insertion Loss: 0.87 dB max. in DC to 18 GHz
- VSWR: 1.5 max. in DC to 18 GHz
- Insulation Resistance: 5000 MΩ at 500 V DC in 120 sec.
- Withstanding Voltage: 750 V (RMS) at 500 V AC in 60 sec.
- Working Voltage: 250 V (RMS)
- Connectors: SMA straight plug to SMA straight bulkhead jack
- Cable Type: Hand-Formable .085 WR-CXASY
- Coupling Nut Material: Brass with gold over nickel plating
- Coupling Nut Plating: Gold, min. 0.076μm over Nickel
- Retention Ring Material: Stainless Steel (passivated), Straight orientation
- Gasket Material: Silicone, Red
- Heat Shrink Tube: PE, Black, compatible with high temperatures
- Mechanical Properties: Genter contact retention 26.7 N min., mating cycle 500, coupling nut retention 267 N min., max bend radius 6 mm
- Packaging: Bag, 10 units per package
Buy the Buy Wirth Elektronik SMA Connector Part Number 65503503215308 Online
Purchase the Wirth Elektronik SMA RF connector online today for precise high-frequency performance, durable brass construction, and gold-plated contacts. This connector supports a frequency range up to 18 GHz, making it ideal for RF, communication, and test systems requiring high reliability and low signal loss. Featuring a robust design with PTFE insulators and stainless steel retention rings, it guarantees excellent electrical and mechanical stability. Order now to secure top-quality RF connectors for your advanced electronic applications with fast, secure online delivery.
Order your Wirth Elektronik SMA Connector 65503503215308 today and ensure reliable RF connections for your high-frequency systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503215308?
You can click on the BUY or RFQ button to purchase 65503503215308 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503215308?
You can download the 65503503215308 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503215308?
WURTH ELEKTRONIK
