WURTH ELEKTRONIK 65503503530503 RF Connector
This SMA straight plug is designed for flexible cable RG174 WR- and offers reliable RF connections in high-frequency applications. Constructed with brass body and gold-plated contacts, it ensures excellent electrical conductivity. The connector features a passivated stainless steel retention ring, silicone gasket, PTFE insulator, and a black PE heat shrink tube for durability. Suitable for DC to 1 GHz impedance, it supports up to 500V withstand voltage, 50 ohm impedance, and 500 mating cycles. Ideal for military, aerospace, and communication equipment, ensuring optimal performance and robust connection.
WURTH ELEKTRONIK 65503503530503 RF Connector Specifications:
- Connector Type: SMA straight plug
- Cable Type: Flexible RG174 WR-
- Body Material: Brass
- Body Plating: Gold, min. 0.076µm over Nickel
- Insulator Material: PTFE
- Insulator Color: White
- Ferrule Material: Brass
- Ferrule Plating: Gold, min. 0.076µm over Nickel
- Gasket Material: Silicone
- Gasket Color: Red
- Center Contact Material: Brass
- Center Contact Plating: Gold, min. 0.76µm over Nickel
- Retention Ring (C Ring) Material: Stainless Steel
- Retention Ring Plating: Passivated
- Heat Shrink Tube Material: PE
- Heat Shrink Tube Color: Black
- Impedance: 50 ohms
- Operating Temperature: -20 °C up to +80 °C
- Maximum VSWR: 1.3 at DC to 1 GHz
- Insertion Loss: 0.42 dB max at DC to 1 GHz
- Insulation Resistance: 1000 MΩ min at 500 V
- Withstanding Voltage: 750 V RMS at 500 V
- Working Voltage: 250 V RMS
- Mating Cycle: 500
- Recommended Mating Torque: 57 N·cm
- Min. Bend Radius: 30 mm
- Cable Retention Force: 44.5 N min
- Compliance: RoHS
- Temperature Range: -20°C to +80°C

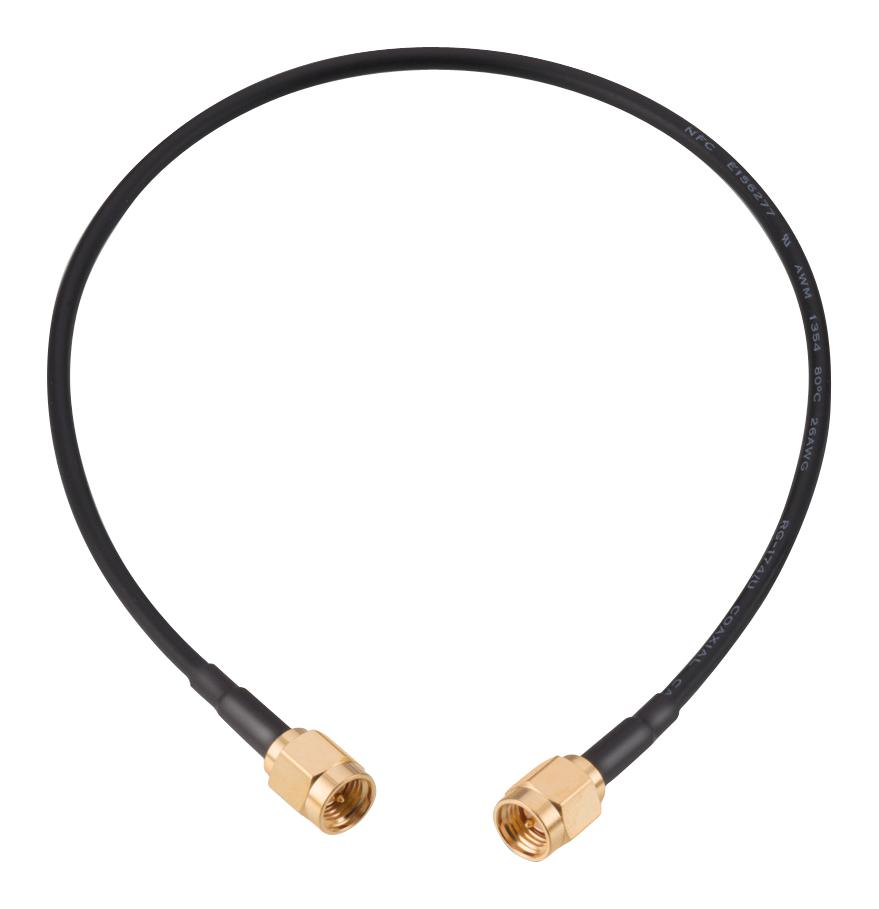

Buy the Buy Wirth Elektronik SMA Straight Plug Part Number 65503503530503 Online
Enhance your RF signal integrity with this high-quality SMA straight plug designed for flexible RG174 cables. Constructed with durable brass and gold-plated contacts, it offers reliable, low-loss connections suitable for RF applications up to 1 GHz. Featuring stainless steel retention ring, silicone gasket, PTFE insulator, and a robust heat shrink tube, this connector ensures longevity and excellent electrical performance. Ideal for communication, aerospace, and military equipment, it provides a secure, stable connection to meet demanding technical standards.
Buy Wirth Elektronik SMA Straight Plug 65503503530503 now and experience unmatched reliability and high-performance RF connectivity.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 65503503530503?
You can click on the BUY or RFQ button to purchase 65503503530503 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 65503503530503?
You can download the 65503503530503 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 65503503530503?
WURTH ELEKTRONIK
