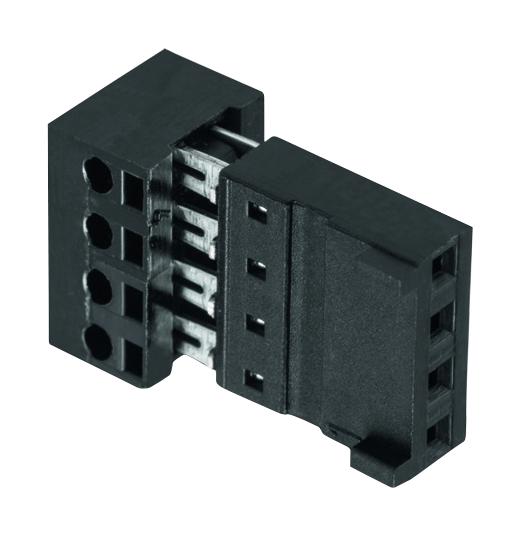

WURTH ELEKTRONIK 661010151922 Wire Connector
This is a general-purpose wire connector designed for crimping onto stranded wires of 24-22 AWG. Made with a PBT insulator rated UL94V0 and phosphor bronze metal, it features tin plating for enhanced durability. Capable of handling a current of 3A and a working voltage of 50VAC, it withstands up to 500VAC minimum. The connector supports up to 25 mating cycles and operates reliably within -40°C to +125°C. RoHS compliant, it suits various electronic applications demanding safety, reliability, and high-performance connections.
WURTH ELEKTRONIK 661010151922 Wire Connector Specifications:
- Material: PBT insulator, phosphor bronze metal
- Flammability Rating: UL94V0
- Color: Black
- Plating: Tin
- Current Rating: 3A
- Working Voltage: 50 VAC
- Withstanding Voltage: 500 VAC minimum
- Insulation Resistance: >1000 MΩ
- Contact Resistance: 20 mΩ max
- Temperature Range: -40°C to +125°C
- Mating Cycles: 25
- Wire Range: 24-22 AWG
- Packaging: 2.54 mm tubes
- RoHS Compliant
Buy the Wurth Series Connector: 661010151922
Purchase the Wurth Wire Connector online today to ensure secure and reliable electrical connections. Designed for 24-22 AWG stranded wires, it features a UL94V0 rated PBT insulator and phosphor bronze contact material with tin plating for durability. Supporting 3A current and 50VAC working voltage, this connector withstands up to 500VAC. It is RoHS compliant and suitable for various demanding electronic applications requiring high safety, reliability, and efficiency, making it an essential component for professional electronics assembly.
Buy Wurth 661010151922 now and experience unmatched reliability and performance in electronic wire connections.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 661010151922?
You can click on the BUY or RFQ button to purchase 661010151922 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 661010151922?
You can download the 661010151922 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 661010151922?
WURTH ELEKTRONIK
