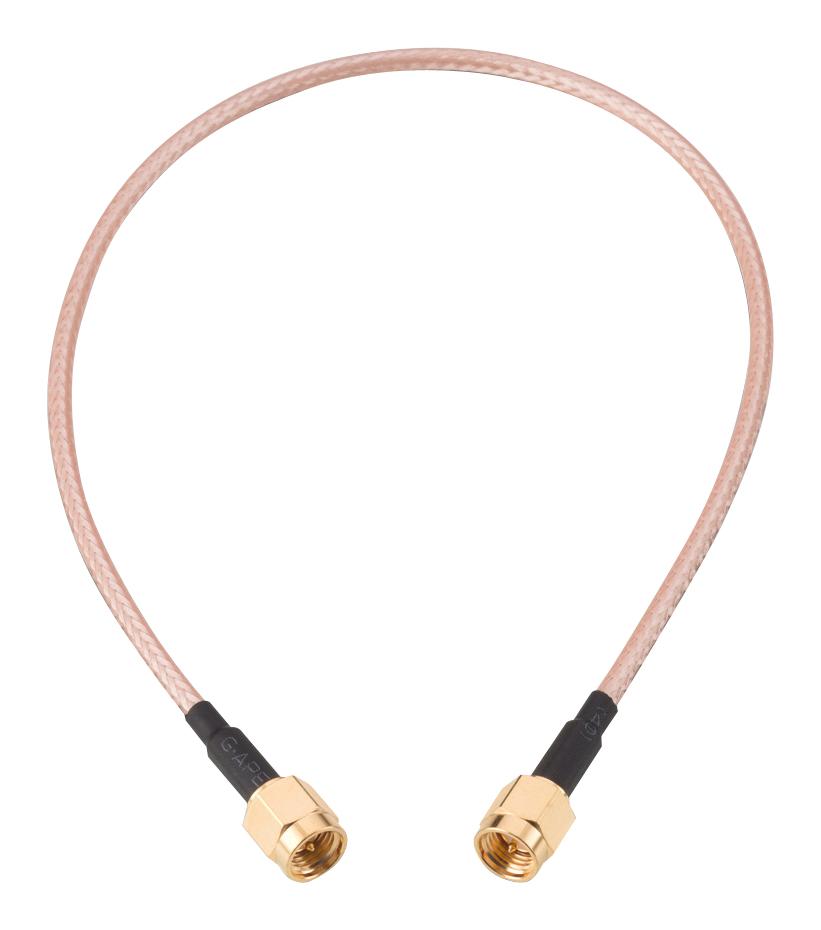

WURTH ELEKTRONIK 65503503515306 SMA RF Connector
This SMA straight plug is designed for flexible RG316 cables, featuring a double braid WR-CXASY outer shield and gold-plated brass components. Suitable for high-frequency applications up to 6 GHz, it offers excellent electrical performance with a low VSWR of 1.3 max and minimal insertion loss of 0.64 dB max. Constructed with durable materials including stainless steel retention rings and silicone gaskets, it supports up to 500 mating cycles. Ideal for RF systems requiring reliable, high-quality connectors with RoHS compliance and wide temperature tolerance from -55°C to +165°C.
WURTH ELEKTRONIK 65503503515306 SMA RF Connector Specifications:
- Connector type: SMA straight plug to SMA straight plug
- Cable type: Flexible RG316 with double braid WR-CXASY
- Center contact material: Brass with gold plating, minimum 0.76 µm over nickel
- Body material: Brass with gold plating, minimum 0.076 µm over nickel
- Retention ring (C ring): Stainless steel, passivated
- Gasket material: Silicone, red color
- Ferrule material: Brass with gold plating
- Heat Shrink Tube: PE, black color, with minimum 0.076 µm gold plating
- Operating temperature: -55°C to +165°C
- Impedance: 50 ohms, DC to 6 GHz
- VSWR: Max. 1.3
- Insertion Loss: Max. 0.64 dB at DC to 6 GHz
- Insulation Resistance: ≥5000 MΩ at 500 V DC in 120 sec
- Withstanding Voltage: ≥500 V AC at 60 sec, minimum 750 V RMS
- Working Voltage: 250 V RMS
- Mating cycle: ≥500 cycles
- Maximum torque: 57 N·cm
- Min. bend radius: 15.3 mm
- Cable retention force: ≥89 N
- Package: Bag of 10 units
- Compliance: RoHS
Buy the Wirth Elektronik Series SMA RF Connector: 65503503515306
Order the Wirth Elektronik SMA RF Connector 65503503515306 online today and ensure your RF systems operate at peak performance. This high-quality connector features durable gold-plated brass construction, supporting frequencies up to 6 GHz with excellent electrical characteristics such as low VSWR and minimal insertion loss. Designed for flexible RG316 cables with double braid shielding, it withstands harsh environments with a wide temperature range from -55°C to +165°C. Enjoy hassle-free online purchasing, fast delivery, and the confidence of a trusted RF component for your critical applications.
Buy Wirth Elektronik SMA RF Connector 65503503515306 now and experience unmatched reliability and performance in high-frequency RF applications.
