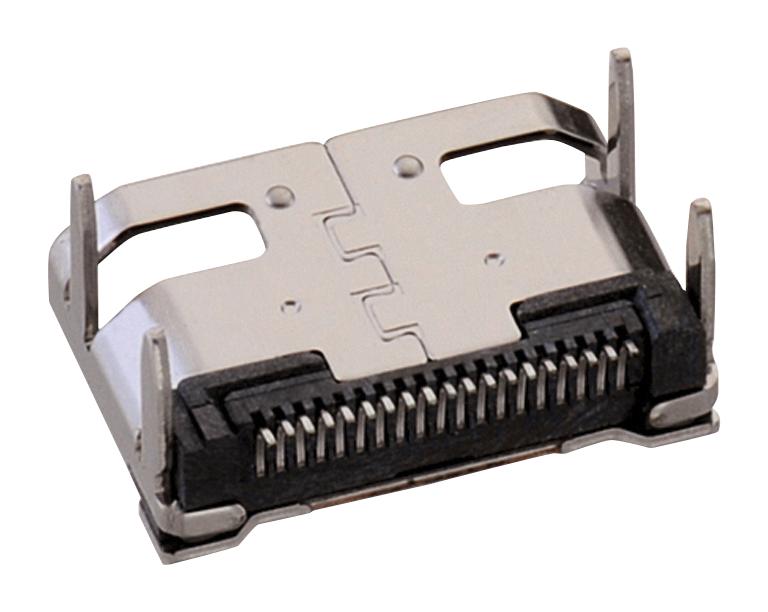

WURTH ELEKTRONIK 685119136923 Mini HDMI Horizontal Connector

The Würth Elektronik WR-COM Mini 685119136923 is a compact, horizontal HDMI connector designed for use in a wide range of electronic devices. Its miniature size makes it suitable for space-constrained applications, while the gold-plated phosphor bronze contacts ensure reliable signal transmission and corrosion resistance. The connector is RoHS compliant and features an LCP insulator with UL94 V-0 flammability rating, enhancing its safety and performance. It is designed for SMT assembly and offers excellent durability with 5000 mating cycles. This connector is ideal for applications requiring high-quality HDMI connectivity in a small form factor.

Authorized Distributors
Source:Newark
Part No:685119136923
Stock:1
Inv Date:06-12-2026
Price: Unit price: $0.618
Buy/RFQ:
Source:DigiKey
Part No:685119136923
Stock:2600
Inv Date:06-12-2026
Price: Unit price: $2.24675
Buy/RFQ:
Part No:685119136923
Stock:2639
Inv Date:06-12-2026
Price: Unit price: $3.06
Buy/RFQ:

WURTH ELEKTRONIK 685119136923 Mini HDMI Horizontal Connector Specifications:

  • Dimensions: Refer to datasheet images
  • Recommended Land Pattern: Refer to datasheet images
  • Pins: 19
  • Durability: 5000 Mating cycles
  • Insulator Material: LCP
  • Insulator Flammability Rating: UL94 V-0
  • Insulator Color: Black
  • Contact Material: Phosphor Bronze
  • Contact Plating: Selective Gold
  • Shielding Material: Brass
  • Shielding Plating: Nickel (Ni)
  • Contact Type: Stamped
  • Operating Temperature: -25 up to +85 °C
  • Rated Current: 0.5 A
  • Working Voltage: 40 V (AC)
  • Withstanding Voltage: 500 V (AC) for 1 min
  • Contact Resistance: 30 mΩ (max.)
  • Insulation Resistance: 100 MΩ (min.)
  • RoHS Approval: Compliant [2011/65/EU&2015/863]
  • REACh Approval: Conform or declared [(EC)1907/2006]
  • Halogen Free: Conform [IEC 61249-2-21]
  • UL Approval: E323964
  • HDMI Approval: Approved
  • Packaging Type: Tape and Reel
  • Tape Width: 24 mm
  • Pull-off Force: 0.1 N - 1.3 N

Buy the 685119136923 WURTH ELEKTRONIK Mini HDMI Horizontal Connector | myMectronic

Securely purchase the Würth Elektronik 685119136923 Mini HDMI Horizontal Connector online for reliable performance and fast delivery.

Buy Now

Frequently Asked Questions

Where can I buy WURTH ELEKTRONIK 685119136923?

You can click on the BUY or RFQ button to purchase 685119136923 from an authorized WURTH ELEKTRONIK distributor.

How do I troubleshoot issues or seek technical support for part 685119136923?

You can download the 685119136923 datasheet or visit the WURTH ELEKTRONIK website for support.

Who is the manufacturer of 685119136923?

WURTH ELEKTRONIK
