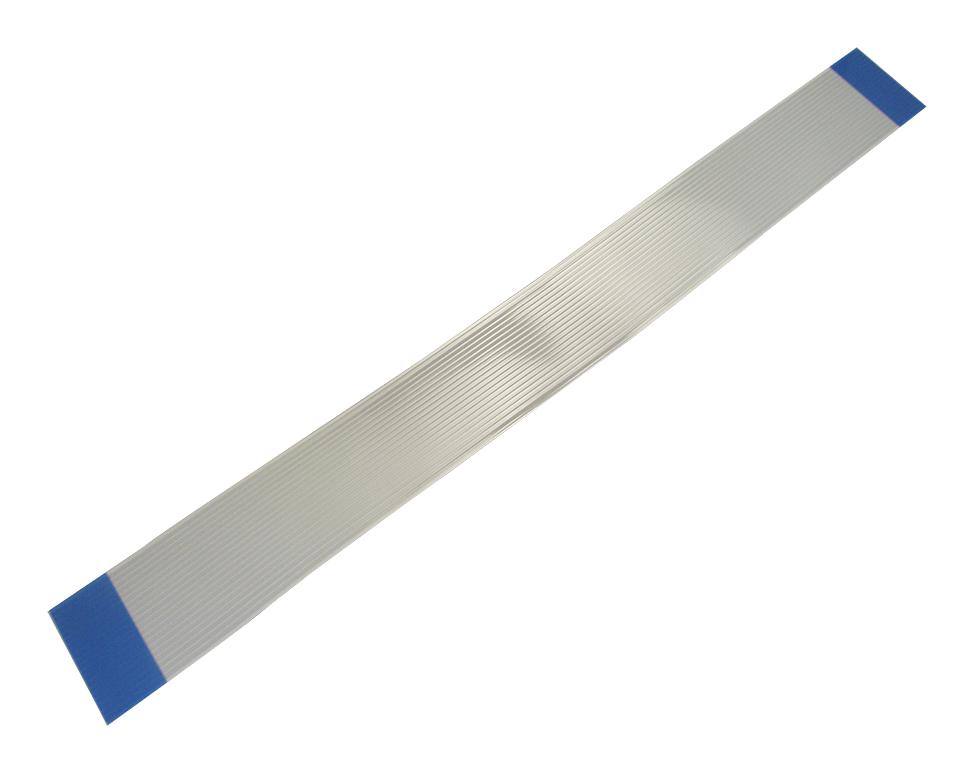

WURTH ELEKTRONIK 686714050001 Flexible Flat Cable
The WR-FFC Flat Flexible Cable Type 2 is a 1.00 mm pitch cable, designed for electronic equipment requiring flexible interconnections. Made with PET insulation and copper conductors, it offers high durability with up to 20 mating cycles. Operating from -30°C to +105°C with excellent moisture and heat resistance, it is suitable for various electronic applications. The cable features tin-plated contacts, UL approval, and ensures safe, reliable connectivity in compact spaces. Ideal for modern electronic systems demanding flexibility and high performance.
WURTH ELEKTRONIK 686714050001 Flexible Flat Cable Specifications:
- Pitch: 1.00 mm
- Material: PET insulator, copper contacts, tin-plated
- Operating Temperature: -30°C to +105°C
- Flammability: UL SUB.758 approved
- Moisture Resistance: 96 hours at 40°C, 95% RH
- Withstanding Voltage: 500 V (1 min, no breakdown)
- Rated Current: 1 A
- Insulation Resistance: > 1000 MΩ at 500 V
- Conductor Resistance: 1.09 Ω max
- Durability: 20 mating cycles
- Certification: cULus, RoHS, REACH compliant
- Packaging: Bulk and carton options, meeting specified standards
Buy the Buy Wurth Elektronik Flat Flexible Cable Part Number 686714050001 Online
Order the Wurth Elektronik Flat Flexible Cable Type 2 with 1.00 mm pitch online today. Designed for electronic systems requiring flexible interconnections, it features durable PET insulation and copper contacts with tin plating. Operating from -30°C to +105°C, it offers excellent heat and moisture resistance. Certified UL SUB.758, RoHS, and REACH compliant, this cable ensures safe, high-performance connections in compact spaces. Perfect for modern electronics, purchase now for dependable, efficient performance.
Buy Wurth Elektronik part number 686714050001 now and experience unmatched flexibility, durability, and reliable electronic connectivity.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686714050001?
You can click on the BUY or RFQ button to purchase 686714050001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686714050001?
You can download the 686714050001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686714050001?
WURTH ELEKTRONIK
