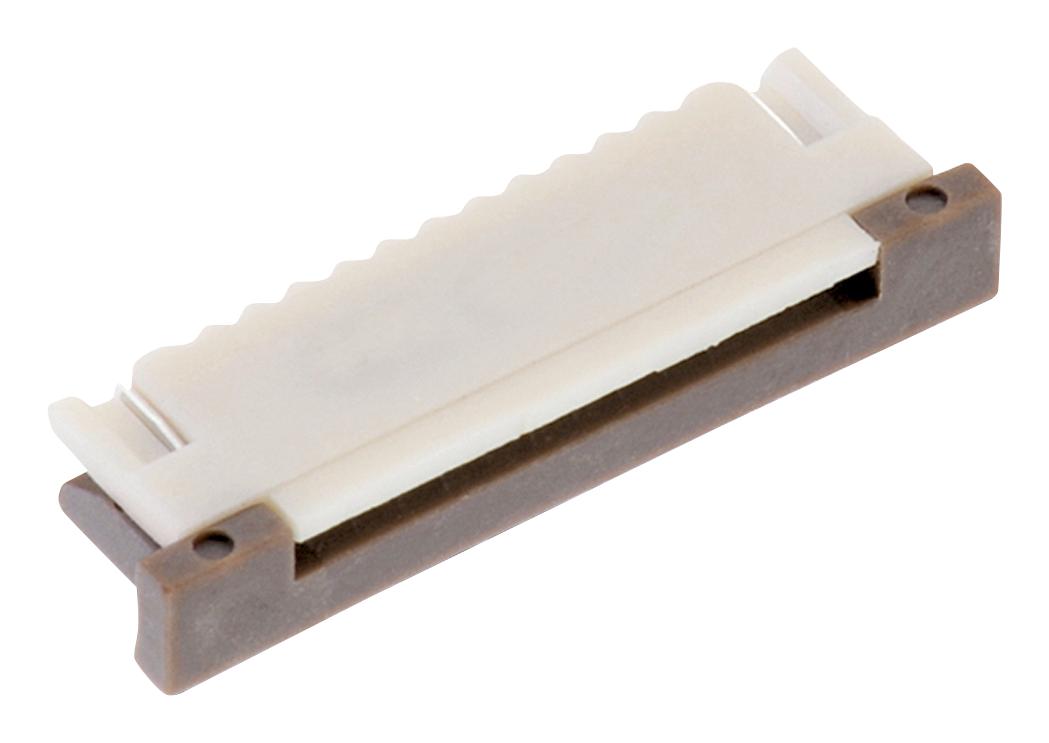

WURTH-ELEKTRONIK 68611114122 FPC Connector ZIF Horizontal
The Würth Elektronik 68611114122 is a ZIF (Zero Insertion Force) FPC connector designed for horizontal mounting in electronic equipment. This connector provides a reliable and easy-to-use connection for flexible printed circuits (FPCs). Its ZIF mechanism allows for insertion and removal without requiring tools, minimizing stress on the FPC. It is suitable for applications requiring a compact and secure FPC connection, commonly found in consumer electronics, industrial control systems, and other general electronic devices. Always consult Würth Elektronik's precaution guide for proper handling.
WURTH-ELEKTRONIK 68611114122 FPC Connector ZIF Horizontal Specifications:
- Dimensions_Pl: 0.15
- Dimensions_1: 0.05
- Dimensions_L2: 0.1
- Dimensions_L: 0.25
- Dimensions_L1: 0.25
- Recommended_Land_Pattern_3.5: 3.5
- Recommended_Land_Pattern_pl: 1.7
- General_Tolerance: ±0.05
- Pitch_P: 1
- Durability: 25 Mating cycles
- Insulator_Material: PPS
- Insulator_Flammability_Rating: UL94 V-0
- Insulator_Color: Beige
- Actuator_Material: PPS
- Actuator_Flammability_Rating: UL94 V-0
- Actuator_Color: Black
- Contact_Material: Phosphor Bronze
- Contact_Plating: 100 (µ") Tin over 50 (µ") Nickel
- Contact_Type: Stamped
- Operating_Temperature: -25 up to +85 °C
- UL_Approval: E323964
- Packaging_Type: Tape and Reel
- Packaging_Unit: 1500
- Rated_Current_IR: 1 A
- Working_Voltage: 25 V (AC)
- Withstanding_Voltage: 500 V (AC) 1 min
- Contact_Resistance_R: 20 mΩ max.
- Insulation_Resistance_RISO: 100 MΩ min.
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Length_L: 18
- Length_L1: 16
- Length_L2: 12.15
- Pin_to_Pin_Middle: 10
