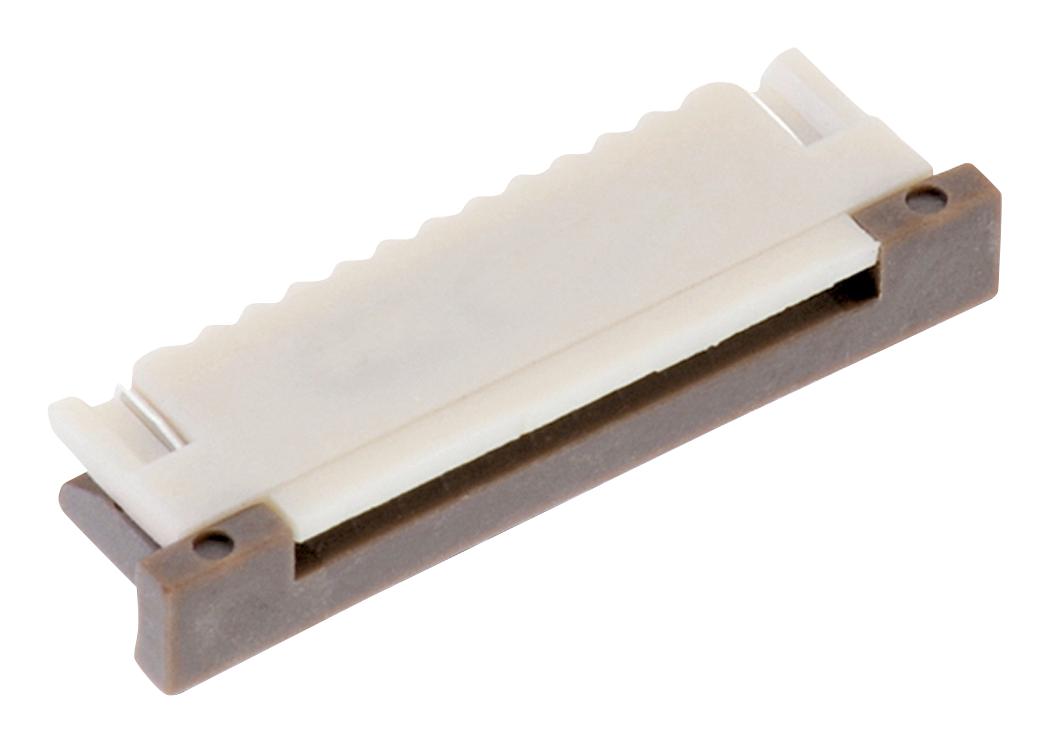

WURTH ELEKTRONIK 68611514122 Zero Insertion Force Connector
The WURTH ELEKTRONIK WR-FPC SMT ZIF Horizontal is a high-quality, reliable zero insertion force connector designed for flexible flat cable connections. Crafted from durable PPS insulator material with UL94 V-0 flammability rating and featuring gold-plated phosphor bronze contacts, it ensures excellent electrical conductivity and long-term stability. The connector operates within a temperature range of -25°C to +85°C, rated for 1 A current and 125 VAC working voltage. Its compact design with a pitch of 1 mm and max height of 22 mm makes it ideal for space-constrained electronic applications requiring secure, easy-to-mate connections.
WURTH ELEKTRONIK 68611514122 Zero Insertion Force Connector Specifications:
- Pins: 15
- Pin to Pin (Middle): 14 mm
- Length L: 22 mm
- Length Y: 20 mm
- Length L: 16.15 mm
- Pitch P: 1 mm
- Operating Temperature: -25°C to +85°C
- Rated Current: 1 A
- Working Voltage: 125 VAC
- Insulator Material: PPS
- Insulator Flammability Rating: UL94 V-0
- Contact Material: Phosphor Bronze
- Contact Plating: 100 (μ) Tin over 50 (μ) Nickel
- Certification: UL Approval 323964, RoHS Compliant, REACH Conform
- Packaging: Tape and Reel, 7500 units
Buy the WURTH ELEKTRONIK Series WR-FPC SMT ZIF Horizontal: 68611514122
Purchase the reliable WURTH ELEKTRONIK WR-FPC SMT ZIF Horizontal connector online now. Ideal for space-constrained electronic devices, this connector features a 1 mm pitch, UL94 V-0 insulator, gold-plated contacts, and high durability to ensure secure data transmission. With certification for safety and RoHS compliance, it helps maintain high-quality standards in your manufacturing or repair processes. Order today to benefit from prompt delivery, competitive pricing, and trusted quality for your electronic assembly needs.
Order your WURTH ELEKTRONIK Series WR-FPC SMT ZIF Horizontal connector today and ensure reliable, easy-to-mate cables in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 68611514122?
You can click on the BUY or RFQ button to purchase 68611514122 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 68611514122?
You can download the 68611514122 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 68611514122?
WURTH ELEKTRONIK
