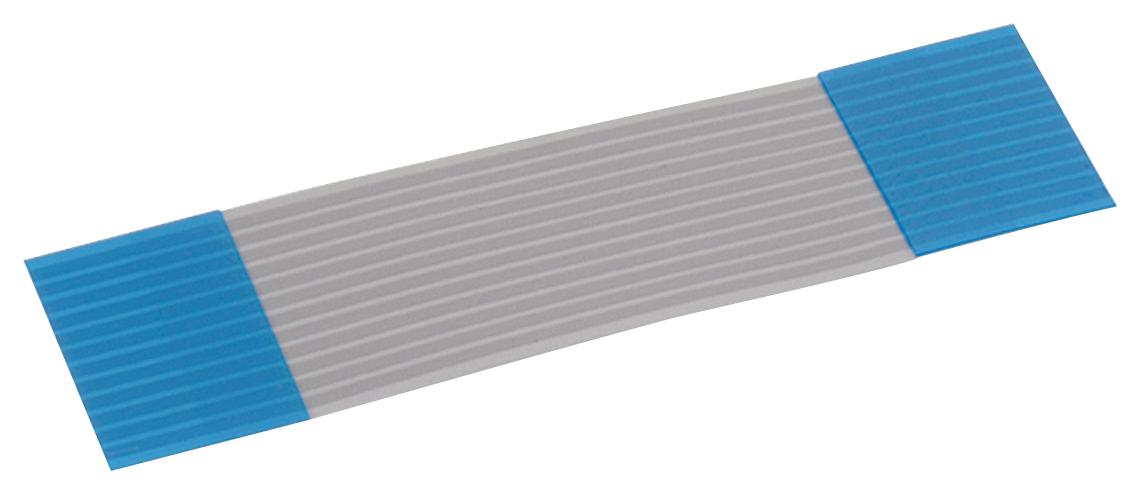

WURTH ELEKTRONIK 686618152001 Flexible Flat Cable
The WR-FFC Flat Flexible Cable provides reliable electrical connections for electronic equipment with a 1 mm pitch and total length of 17 mm, suitable for compact, flexible circuit applications. Made of high-quality PET insulation with copper conductors, it withstands temperatures from -30°C to +105°C and offers excellent moisture resistance and durability for demanding environments. This cable's flat design facilitates easy routing in tight spaces, making it ideal for electronic devices requiring flexible, space-saving wiring solutions with UL and CE certification for safety and quality assurance.
WURTH ELEKTRONIK 686618152001 Flexible Flat Cable Specifications:
- Pitch: 1 mm with +0.08mm tolerance
- Total length: 17 mm with +0.1mm tolerance
- Width: 19 mm with +0.1mm tolerance
- Conductor Width: 0.7 mm with 0.03mm tolerance
- Conductor Thickness: 0.085 mm ±0.01mm
- Support Tape Length 1 & 2: 10 mm ±2mm each
- Strip Length 1 & 2: 5 mm each
- Support Tape Thickness: 0.225 mm ±0.01mm
- Insulation Thickness: 0.043 mm
- Material: PET (White insulator, Blue tape)
- Operating Temperature: -30°C to +105°C
- Heat Resistance: 110°C for 96 hours
- Flammability: UL SUB.758 rated
- Moisture Resistance: 40°C, 95% RH for 96 hours
- Rated Current: 1 A max
- Working Voltage: 60 V
- Insulation Resistance: ≥1000 MΩ at 500 V
- Withstanding Voltage: 500 V AC for 1 min without breakdown
- Conductor Resistance: 1.09 Ω max
- Contact Resistance: 20 mΩ max
- Durability: 20 mating cycles
- Approval: cULus, RoHS, REACH compliant
Buy the Wurth Elektronik Series Flexible Flat Cable: 686618152001
Discover the high-quality flexible flat cable by Wurth Elektronik, featuring 1 mm pitch, 17 mm length, and durable PET insulation for space-constrained electronics. Designed for reliable electrical connections in compact devices, it offers excellent temperature resistance from -30°C to +105°C, moisture resistance, and UL certification ensuring safety and performance. Perfect for applications requiring flexible wiring in tight spaces, its robust construction guarantees longevity through many mating cycles. Order online now for fast delivery and elevate your electronic designs with trusted, high-performance cables.
Order your Wurth Elektronik Series Flat Flexible Cable 686618152001 today and give your electronic projects the reliable, space-saving wiring solution they deserve.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686618152001?
You can click on the BUY or RFQ button to purchase 686618152001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686618152001?
You can download the 686618152001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686618152001?
WURTH ELEKTRONIK
