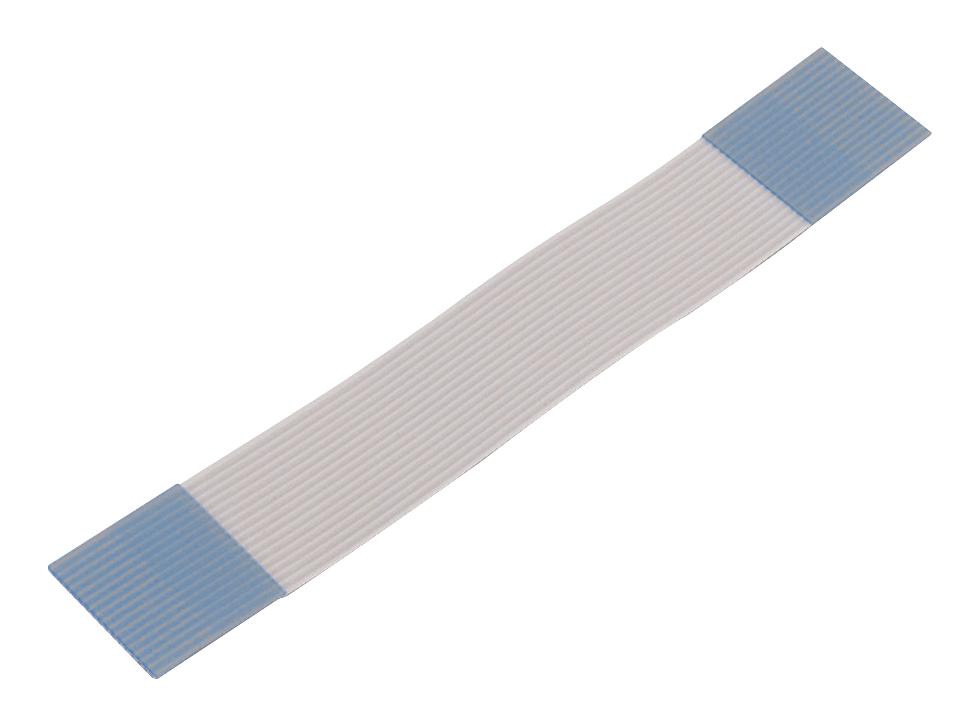

WURTH ELEKTRONIK 686624200001 Flexible Flat Cable
The WR-FFC Flat Flexible Cable is a high-quality, 1.00 mm type cable designed for electronic equipment connectivity. Made with durable PET insulator and copper conductors, it offers a working voltage of 60 V, rated for up to 20 mating cycles, and features tin-plated contacts to ensure reliable connections. Its flexible design supports easy routing in compact spaces, suitable for various electronic devices. The cable’s resistance to moisture, temperature extremes, and mechanical stress makes it ideal for industrial, medical, and consumer applications.
WURTH ELEKTRONIK 686624200001 Flexible Flat Cable Specifications:
- Material: PET insulator, Copper contact material, Tin-plated contacts
- Operating Temperature: -30°C to +105°C
- Rated Current: 1 A
- Working Voltage: 60 V
- Certification: UL, CSA, REACH, RoHS compliant
- Durability: 20 mating cycles
- Flexing Test: 180° bend 20 times
- Moisture Resistance: 40°C at 95% RH for 96 hours
- Insulation Resistance: min 1000 MΩ at 500 V DC
- Conductor Resistance: max 1.09 Ω
- Dimensions: 1.00 mm strip width, 0.025 mm tape thickness
- Flammability Rating: UL 94V-0
- Soldering Profile: According to manufacturer’s specifications
- Packaging: Bag in carton, compliant with DIN EN 61760-2
Buy the Wurth Elektronik 686624200001 – Reliable Flexible Flat Cable for Industrial Applications
Purchase the Wurth Elektronik 686624200001 flat flexible cable online now to enhance your electronic assemblies with a reliable, high-quality connection solution. This 1.00 mm type cable is designed for durability, flexibility, and safety, making it ideal for industrial, medical, and consumer electronics. With UL and CSA certification, moisture and temperature resistance, and a robust design supporting 20 mating cycles, it ensures long-term performance. Secure your supply today and improve your device connectivity with confidence and efficiency.
Order your Wurth Elektronik 686624200001 flat flexible cable today and ensure dependable connectivity in your electronic projects and industrial systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686624200001?
You can click on the BUY or RFQ button to purchase 686624200001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686624200001?
You can download the 686624200001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686624200001?
WURTH ELEKTRONIK
