WURTH ELEKTRONIK 686720152001 Flexible Data Cable
The WR-FFC Flat Flexible Cable is a Type 2, 1.00 mm pitch data transmission cable designed for flexible electronic applications. It features durable construction with copper conductors, tin-plated for corrosion resistance, and a white PET insulator with a blue PET support tape for reinforcement. Rated for operating temperatures from -30°C to +105°C, it offers a working voltage of 60 V and a maximum current of 1 A. Its dimensions include a 1.00 mm pitch, 152 mm length, and 0.225 mm support tape thickness, making it ideal for compact, high-density electronics requiring reliable flexible connections.
WURTH ELEKTRONIK 686720152001 Flexible Data Cable Specifications:
- Pitch: 1 mm
- Total Length: 152 mm
- Support Tape Lengths: 10 mm each
- Support Tape Thickness: 0.225 mm
- Insulation Thickness: 0.043 mm
- Conductor Width: 0.7 mm
- Conductor Thickness: 0.035 mm
- Rated Current: 1 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V (00), 1000 MΩ minimum
- Contact Resistance: 20 mΩ maximum
- Operating Temperature: -30°C to +105°C
- Flammability Rating: UL SUB 758
- Material: PET (Insulator), Copper (Contact), Tin-Plated
- Cable Resistance: 1.09 Ω max
- Durability: 20 mating cycles
- Certification: UL ULus 328849, EC 1907/2006 (REACH) compliance

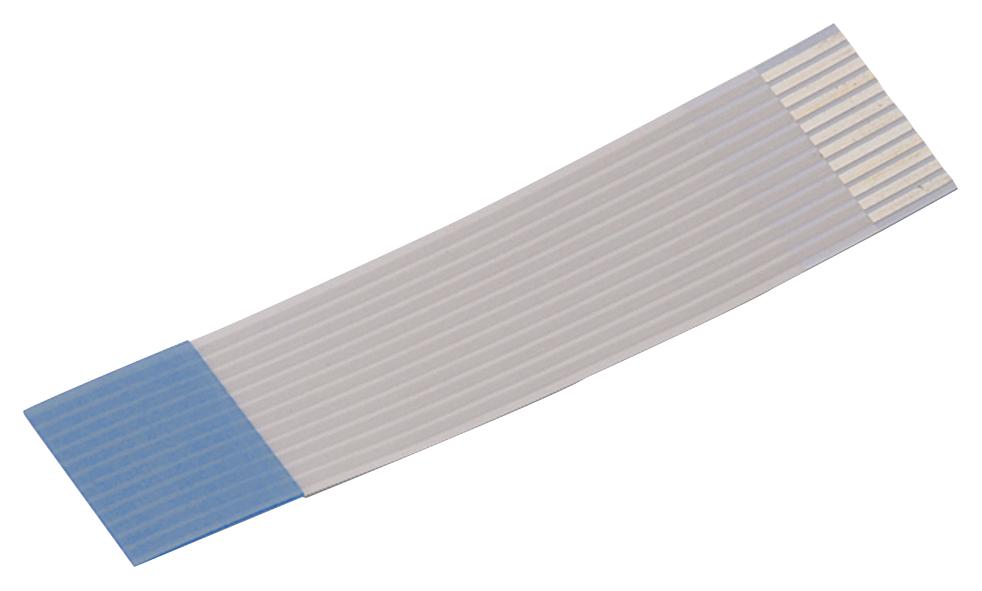

Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 686720152001 Online
Discover the high-quality WURTH ELEKTRONIK Flat Flexible Cable, ideal for electronic devices requiring flexible connections. With a 1.00 mm pitch, durable copper conductors, and PET insulation, this cable offers excellent temperature stability from -30°C to +105°C. Its compact size—152 mm long with support tape thickness of 0.225 mm—makes it suitable for dense electronic assemblies. Rated for 60 V and 1 A, it ensures reliable performance and durability across various applications. Buy online now for fast delivery and optimal connection quality.
Get WURTH ELEKTRONIK 686720152001 today—designed for reliable, flexible electronic connections in compact systems.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686720152001?
You can click on the BUY or RFQ button to purchase 686720152001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686720152001?
You can download the 686720152001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686720152001?
WURTH ELEKTRONIK
