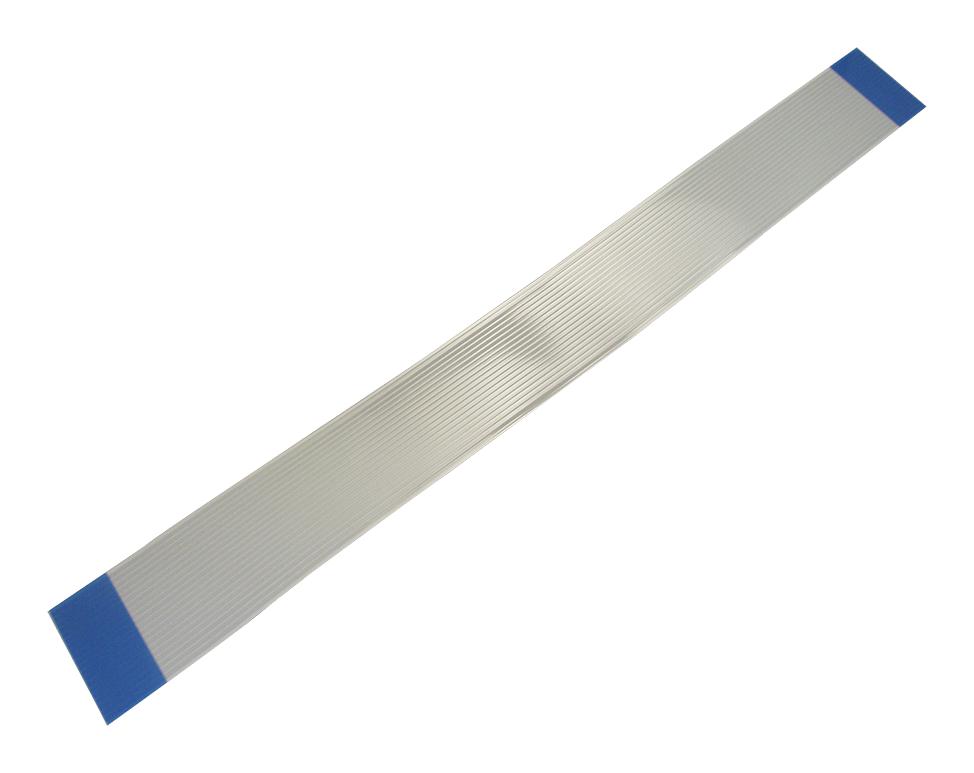

WURTH ELEKTRONIK 686718200001 Flat Flexible Cable
The WR-FFC Flat Flexible Cable is a Type 2, 1.00 mm pitch cable designed for flexible electronic connections. Made with high-quality PET insulator and copper contact material, it offers reliable performance in various electronic applications. It complies with international standards, ensuring durability for over 20 mating cycles and resistance to moisture, heat, and flammability. Suitable for use in general electronic equipment, this cable features a rated current of 1 A and a working voltage of 60 V, making it ideal for compact, lightweight device connections requiring flexibility and durability.
WURTH ELEKTRONIK 686718200001 Flat Flexible Cable Specifications:
- Pitch: 1.00 mm
- Material: PET insulator, Copper contacts with Tin plating
- Rated Current: 1 A
- Working Voltage: 60 V
- Operating Temperature: -30°C to +105°C
- Flammability: UL SUB.758
- Insulation Resistance: 500 V at 1000 MΩ min.
- Conductor Resistance: 1.09 Ω max.
- Tensile Strength: 35 N/mm² min.
- Elongation of Insulator: 60% min.
- Heat Resistance: 110°C for 96 hours
- Moisture Resistance: 40°C, 95% RH for 96 hours
- Durability: 20 mating cycles
- Certification: UL US, EC compliant, REACH compliant
Buy the Wurth Elektronik Series Flat Flexible Cable: 1.00 mm - 686718200001
Enhance your electronic projects with the high-quality Flat Flexible Cable designed for optimal performance and durability. Made with PET insulator and copper contacts, this 1.00 mm pitch cable supports a rated current of 1 A and operates up to 60 V. It withstands harsh conditions with excellent moisture and heat resistance and offers over 20 mating cycles for long-term reliability. Easy to install, flexible, and compliant with international safety standards, it’s the perfect choice for compact, lightweight electronic connections in various devices. Order online today and ensure your projects meet high standards of quality and performance.
Buy Wurth Elektronik Flat Flexible Cable now and experience unmatched flexibility and reliable electronic connections in your designs.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 686718200001?
You can click on the BUY or RFQ button to purchase 686718200001 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 686718200001?
You can download the 686718200001 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 686718200001?
WURTH ELEKTRONIK
