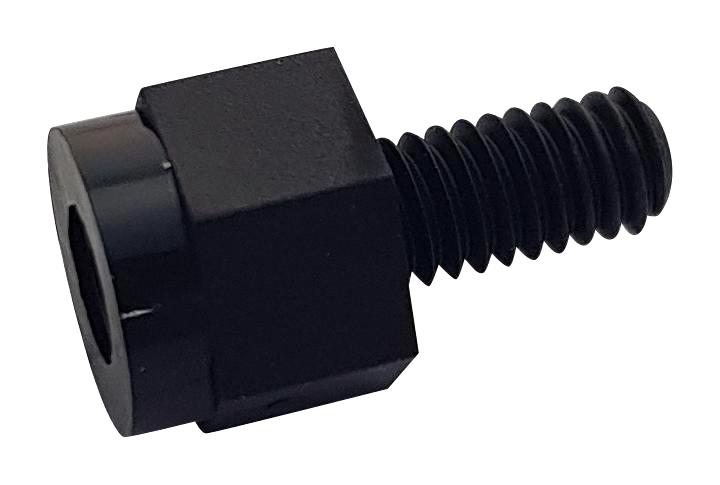

WURTH ELEKTRONIK 971050155 Plastic Spacer Stud
The Würth Elektronik WA-SPAIE 971050155 is a plastic spacer stud designed for use in general electronic equipment. Constructed from polyamide, it offers excellent insulation and mechanical strength. This spacer features both inner and outer threads (M2.5) and is ideal for applications requiring secure component spacing and isolation. It is RoHS and REACH compliant, ensuring environmental responsibility. Proper storage and handling are crucial to maintain product integrity, and customers should consult Würth Elektronik for approval before use in critical applications.
WURTH ELEKTRONIK 971050155 Plastic Spacer Stud Specifications:
- Dimensions_A_mm: N/A
- SW_mm: 5
- Lu0_1_mm: N/A
- Tlo_mm: 8
- Ti_mm: M2.5
- To_mm: M2.5
- Tli_mm: 3.5
- Material: Polyamide
- Color: Black
- Flammability_Rating: UL94 HB
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature_C: -30 up to +110
- Storage_Conditions_C_RH: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- Packaging: Bag
- Length_L_mm: 5
- Description: WA-SPAIE Plastic Spacer Stud
- Thread_Type: with Metric Thread, internal/external
- Status: Valid
- Page: 1/3
