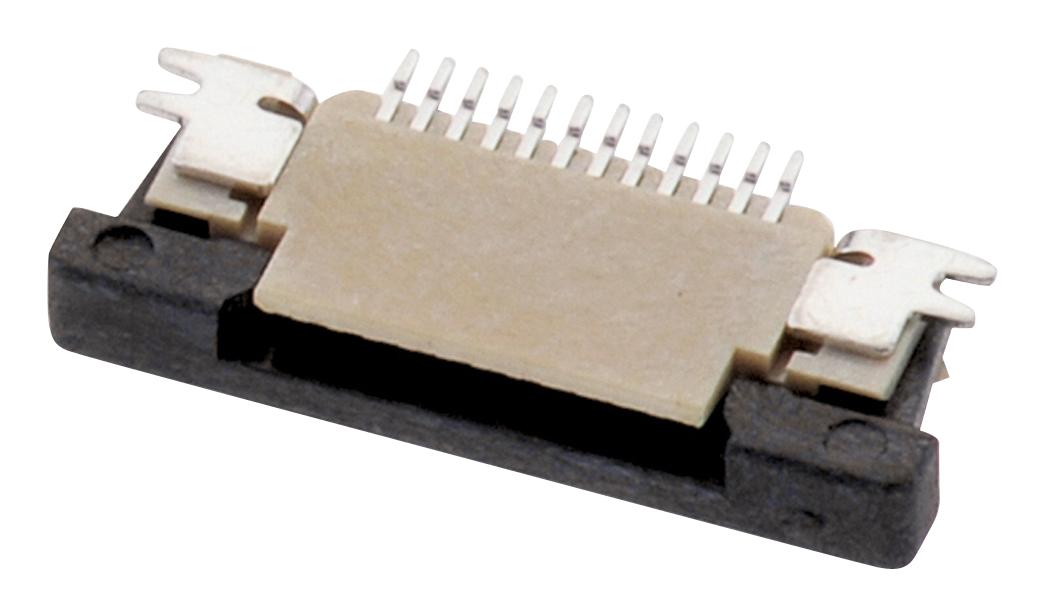

WURTH ELEKTRONIK 68713214522 FPC ZIF Connector
The WR-FPC SMT ZIF Horizontal connector from Wurth Elektronik is a high-precision, bottom contact, 0.50 mm pitch connector designed for flexible printed circuit applications. Suitable for modern electronic equipment, it features 32 pins with a pin-to-pin middle spacing of 15.5 mm, a length of 22.4 mm, and a height of 16.6 mm. Certified for REACH and RoHS, it supports up to 25 mating cycles, with UL94 V-0 flammability rating, making it ideal for compact, reliable connections in electronic devices requiring precise alignment and durability.
WURTH ELEKTRONIK 68713214522 FPC ZIF Connector Specifications:
- Pins: 32
- Pin to Pin (Middle): 15.5 mm
- Length: 22.4 mm
- Height: 16.6 mm
- Material: Phosphor Bronze contacts, Brass solder tabs
- Contact Plating: 100 µ
- 50
- Nickel
- Insulator Material: Tape and Reel, UL94 V-0 flammability rating
- Operating Temperature: -25°C to +85°C
- Rated Current: 0.5 A
- Working Voltage: 50 VAC
- Withstanding Voltage: 250 V (AC, 1 min)
- Contact Resistance: Max 20 mΩ
- Insulation Resistance: Min 100 MΩ
- Durability: 25 mating cycles
- Certifications: REACH, RoHS, UL Approved
Buy the Wurth Elektronik Series Connectors: 0.50 mm Pitch ZIF Horizontal Connector: 68713214522
Order the Wurth Elektronik 68713214522 FPC ZIF connector online today to ensure reliable, compact, and durable connections in your electronic applications. This 0.50 mm pitch connector with 32 pins features bottom contact design, supporting up to 25 mating cycles. Its high-quality materials, UL94 V-0 flammability rating, and certifications for RoHS and REACH make it ideal for modern electronic devices. Easy to install and suitable for tight spaces, it enhances performance and reliability in manufacturing and repair. Secure your supply and streamline your assembly process now.
Buy Wurth Elektronik 68713214522 connector now and experience unmatched reliability and precise electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 68713214522?
You can click on the BUY or RFQ button to purchase 68713214522 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 68713214522?
You can download the 68713214522 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 68713214522?
WURTH ELEKTRONIK
