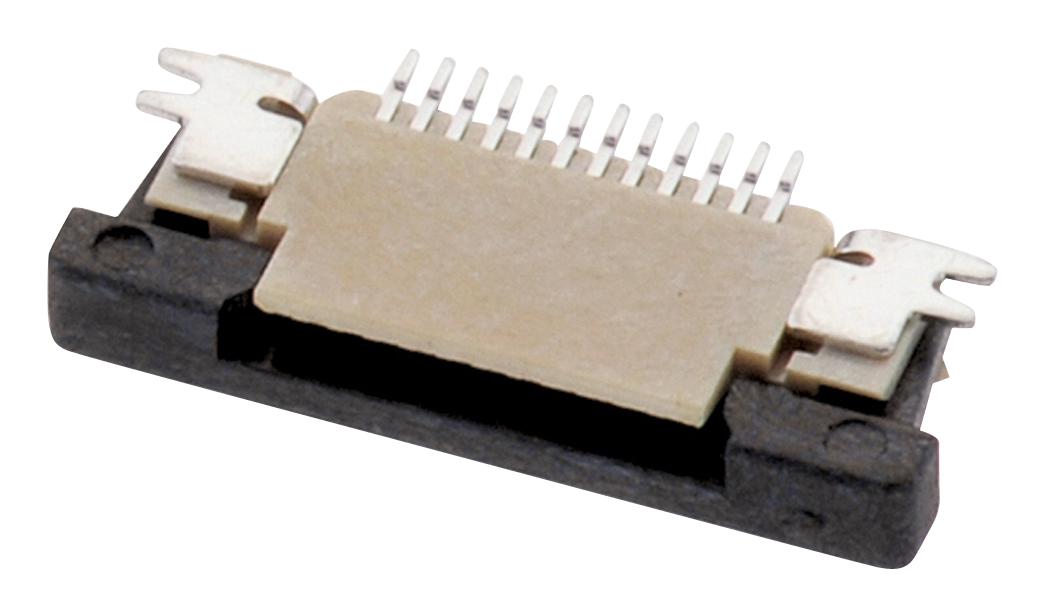

WURTH ELEKTRONIK 68714514522 FPC SMT ZIF Horizontal Connector
The Würth Elektronik 68714514522 is a horizontal FPC (Flexible Printed Circuit) connector designed for surface mount technology (SMT) applications. It features a 0.5mm pitch, providing a compact and space-saving solution. The connector's Ivory LCP insulator and Phosphor Bronze contacts ensure reliable electrical performance. It is RoHS compliant and intended for use in general electronic equipment, excluding applications requiring high safety or reliability standards such as aerospace or medical devices. Always consult Würth Elektronik's precaution guide for proper handling and usage.
WURTH ELEKTRONIK 68714514522 FPC SMT ZIF Horizontal Connector Specifications:
- Pins: 45
- Pin to Pin (Middle) pl: 22 mm
- Length LL1: 28.923.1 mmmm
- Pitch: 0.5 mm
- Durability: 25 Mating cycles
- Insulator Material: LCP
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Ivory
- Actuator Material: PA9T
- Actuator Flammability Rating: UL94 V-0
- Actuator Color: Black
- Contact Material: Phosphor Bronze
- Contact Plating: 100 (µ") Tin over 50 (µ") Nick|el
- Contact Type: Stamped
- Solder Tabs: Brass
- REACh Approval: Conform or declared [(EC)1907/2006]
- UL Approval: E323964
- Packaging: Tape and Reel
- Packaging Unit Qty: 2000
- Operating Temperature: -25 up to +85 °C
- Rated Current: 0.5 A
- Working Voltage: 50 V (AC)
- Withstanding Voltage: 2 kV, 1 min, 50 V (AC)
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 100 MΩ min.
