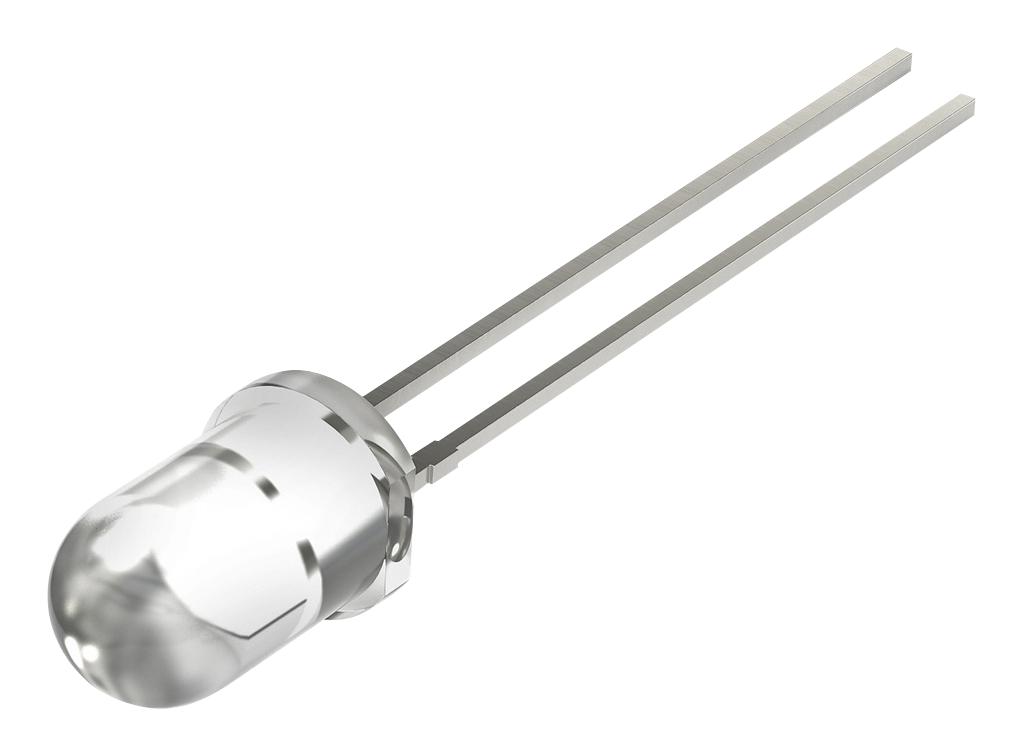

WURTH ELEKTRONIK 1540052NA3090 THT Phototransistor Round Waterclear
The Würth Elektronik 1540052NA3090 is a through-hole phototransistor designed for a wide range of electronic applications. Its waterclear lens provides excellent light transmission, while its compact size makes it suitable for space-constrained designs. The device is characterized by its spectral sensitivity, enabling it to respond to light within a broad wavelength range. It is RoHS compliant, ensuring environmental responsibility. This phototransistor is intended for general electronic equipment and is not authorized for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 1540052NA3090 THT Phototransistor Round Waterclear Specifications:
- Dimensions: 5.0 ±0.25 mm (length), 25.4 min. (width), 1.0 min. (height), 5.8 ±0.25 mm (height), 0.5 ±0.25 mm (width), 8.7 ±0.25 mm (length), 1.0 ±0.25 mm (height), 0.7 ±0.25 mm (height)
- Power Dissipation: 75 mW
- Collector Emitter Voltage: 30 V
- Emitter Collector Voltage: 5 V
- Continuous Collector Current: 20 mA
- ESD Threshold Human Body: 2000 V
- Chip Technology: Si
- Polarity: NPN
- Lens Type: Waterclear
- Operating Temperature: -40 up to +85 °C
- Storage Conditions (in original packaging): < 40 °C ; < 75 % RH
- Storage Conditions (for single parts): -40 up to +85 °C
- Moisture Sensitivity Level (MSL): 1
- Wavelength of Peak Sensitivity: 850 nm
- Range of Spectral Bandwidth: 400-1100 nm
- Collector Current: 6-15 mA
- Collector-Emitter Dark Current: ≤300 nA
- Viewing Angle Phi 0°: ≤30°
- RoHS Approval: Compliant
- REACh Approval: Conform
- Halogen Free: Conform
Buy the 1540052NA3090 WURTH ELEKTRONIK THT Phototransistor Round Waterclear | myMectronic
Purchase the WURTH ELEKTRONIK 1540052NA3090 THT Phototransistor securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 1540052NA3090?
You can click on the BUY or RFQ button to purchase 1540052NA3090 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 1540052NA3090?
You can download the 1540052NA3090 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 1540052NA3090?
WURTH ELEKTRONIK
