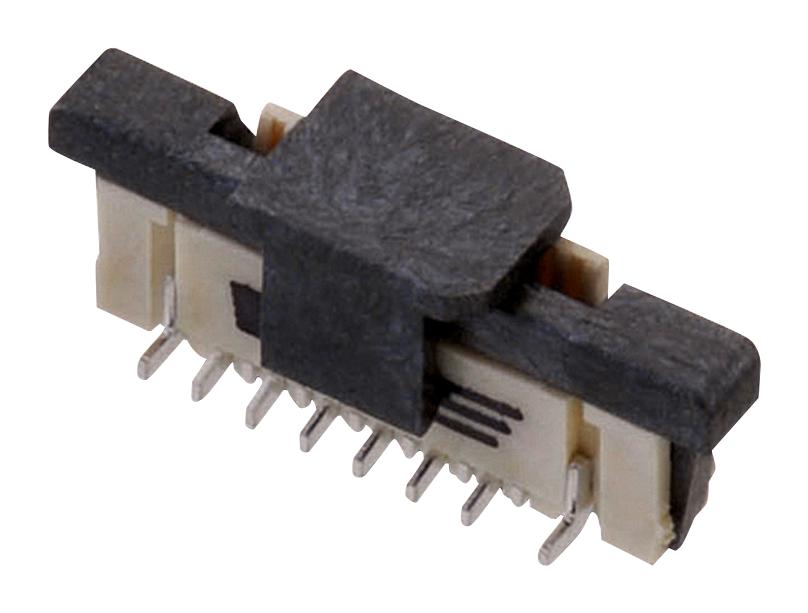

WURTH ELEKTRONIK 687318124422 FPC Connector ZIF Vertical
The Würth Elektronik 687318124422 is a ZIF vertical connector specifically engineered for flexible printed circuits. Its ZIF design allows for easy and reliable connection without requiring manual insertion force, minimizing stress on the FPC. Constructed with phosphor bronze contacts and tin plating, this connector ensures excellent conductivity and corrosion resistance. Compliant with RoHS standards, it is suitable for a wide range of general electronic equipment applications. It is not intended for use in safety-critical applications without proper evaluation and agreement with Würth Elektronik.
WURTH ELEKTRONIK 687318124422 FPC Connector ZIF Vertical Specifications:
- Dimensions: 0.2 ±0.05 mm
- Length: 15.4 mm
- Length1: 9.6 mm
- Pitch: 0.5 mm
- Durability: 25 Mating cycles
- Insulator Material: LCP
- Insulator Flammability Rating: UL94 V-0
- Actuator Material: PA9T
- Actuator Flammability Rating: UL94 V-0
- Contact Material: Phosphor Bronze
- Contact Plating: 100 (µ") Tin over 50 (µ") Nickel
- Contact Type: Stamped
- REACh Approval: Conform or declared [(EC)1907/2006]
- UL Approval: E323964
- Packaging: Tape and Reel with Cap
- Packaging Unit: 1000
- Operating Temperature: -25 up to +85 °C
- Rated Current: 0.5 A
- Working Voltage: 50 V (AC)
- Withstanding Voltage: 250 V (AC) for 1 min
- Contact Resistance: 20 mΩ max.
- Insulation Resistance: 100 MΩ min.
Buy the 687318124422 WURTH ELEKTRONIK FPC Connector ZIF Vertical | myMectronic
Purchase the Würth Elektronik 687318124422 FPC Connector ZIF Vertical securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687318124422?
You can click on the BUY or RFQ button to purchase 687318124422 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687318124422?
You can download the 687318124422 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687318124422?
WURTH ELEKTRONIK
