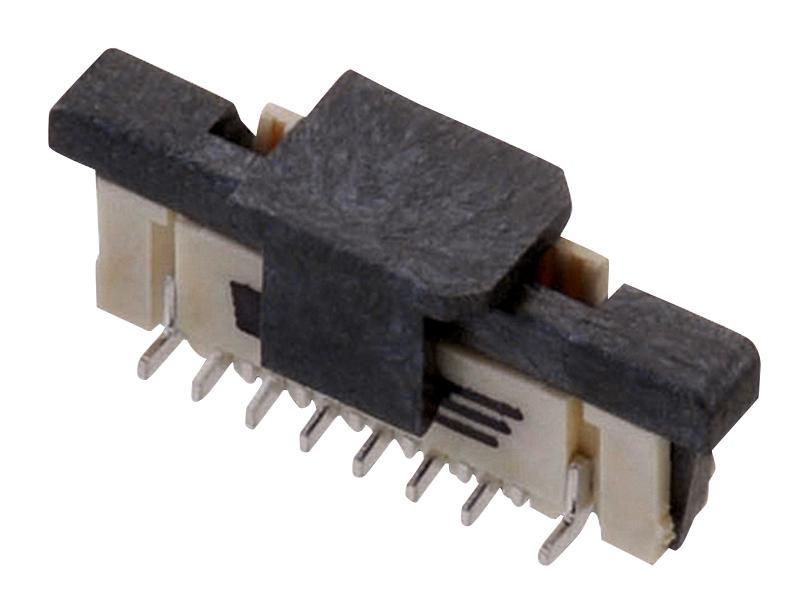

WURTH ELEKTRONIK 687328124422 FPC Connector ZIF Vertical
The Würth Elektronik 687328124422 is a ZIF vertical connector specifically engineered for flexible printed circuits. Its ZIF design allows for easy and reliable connection without requiring excessive force, minimizing stress on the FPC. Constructed with phosphor bronze contacts and tin plating, it ensures excellent conductivity and corrosion resistance. This connector is RoHS compliant and suitable for a wide range of general electronic equipment applications, excluding those requiring high safety or reliability standards such as aerospace or medical devices. Always consult Würth Elektronik's precaution guide for proper handling and usage.
WURTH ELEKTRONIK 687328124422 FPC Connector ZIF Vertical Specifications:
- Dimensions: 0.2 ±0.05 mm
- Article Properties: 0.5, 1.3 ±0.15 mm
- Recommended Land Pattern: 0.5, 1.5, 1 mm
- Pattern Properties: General tolerance ±0.05 mm
- Pin to Pin (Middle): 13.5 mm
- Length: 20.4 mm
- Length (L1): 14.6 mm
- Pitch (P): 0.5 mm
- Durability: 25 Mating cycles
- Insulator Material: LCP
- Insulator Flammability Rating: UL94 V-0
- Insulator Color: Ivory
- Actuator Material: PA9T
- Actuator Flammability Rating: UL94 V-0
- Actuator Color: Black
- Contact Material: Phosphor Bronze
- Contact Plating: 100 (µ") Tin over 50 (µ") Nickel
- Contact Type: Stamped
- Solder Tabs: Brass
- REACh Approval: Conform or declared [(EC)1907/2006]
- UL Approval: E323964
- Packaging: Tape and Reel with Cap
- Packaging Unit (Qty): 1000
- Operating Temperature: -25 up to +85 °C
- Rated Current (IR): 0.5 A
- Working Voltage: 50 V (AC)
- Withstanding Voltage: 250 V (AC) for 1 min
- Contact Resistance (R): 20 mΩ max.
- Insulation Resistance (RISO): 100 MΩ min.
- RoHS Approval: Compliant [2011/65/EU&2015/863]
Buy the 687328124422 WURTH ELEKTRONIK FPC Connector ZIF Vertical | myMectronic
Purchase the Würth Elektronik 687328124422 FPC Connector ZIF Vertical securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687328124422?
You can click on the BUY or RFQ button to purchase 687328124422 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687328124422?
You can download the 687328124422 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687328124422?
WURTH ELEKTRONIK
