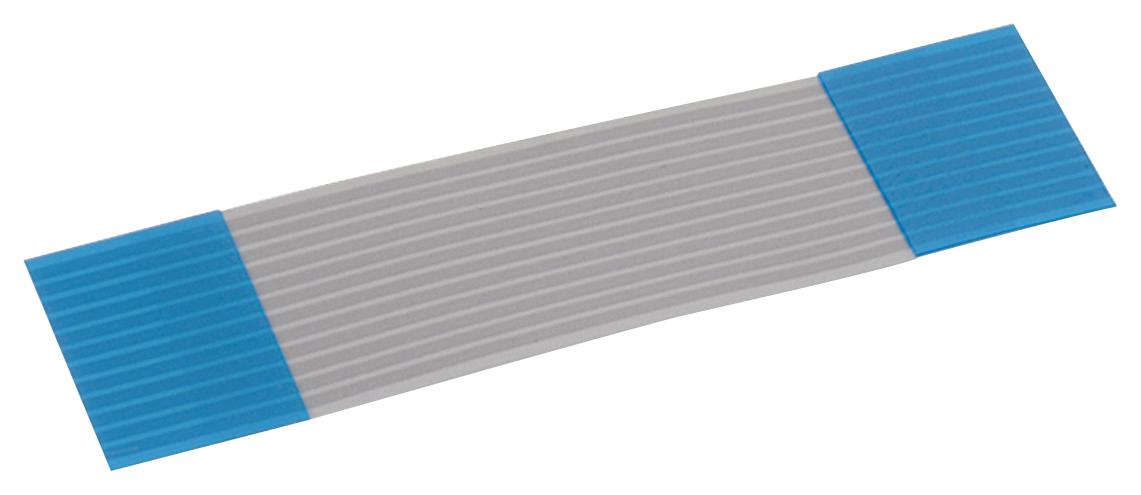

WURTH ELEKTRONIK 687616100002 Flexible Connector Cable
The WURTH ELEKTRONIK flat flexible cable type 1, 0.50 mm pitch, 75 mm total length, and 85 mm width offers exceptional durability and flexibility for electronic connections. Made with high-quality PET insulator and copper contact material, this connector supports up to 0.5 A rated current and 60 V operating voltage. It withstands temperatures from -30°C to +105°C and features excellent moisture resistance and flammability ratings. Ideal for flexible wiring in electronic devices, it ensures reliable, high-performance connections for industrial and consumer equipment.
WURTH ELEKTRONIK 687616100002 Flexible Connector Cable Specifications:
- Pitch: 0.50 mm
- Total Length: 75 mm
- Width: 85 mm
- Conductor Thickness: 0.05 mm
- Insulation Thickness: 0.043 mm
- Rated Current: 0.5 A
- Working Voltage: 60 V
- Temperature Range: -30°C to +105°C
- Contact Resistance: 20 mo
- Insulation Resistance: 500 V (DC), 1000 mo minimum
- Durability: 20 mating cycles
- Flammability Rating: UL SUB.758
- Material: PET insulator, Copper contact, Tin-plated
- Moisture Resistance: 40°C, 95% RH for 96 hours
- Heat Resistance: 110°C for 96 hours
Buy the Buy WURTH ELEKTRONIK Flat Flexible Cable Part Number 687616100002 Online
Purchase the WURTH ELEKTRONIK flexible connector cable online today, designed for high performance and durability in electronic equipment. This 0.50 mm pitch cable boasts a total length of 75 mm and a width of 85 mm, with high-quality PET insulation and copper contacts, rated for 0.5 A and up to 60 V. Its robust construction withstands temperatures from -30°C to +105°C and offers excellent moisture and flammability resistance. Ideal for industrial, consumer, and automation applications, it ensures reliable, safe connectivity and long-term operation in dynamic environments.
Get WURTH ELEKTRONIK 687616100002 today—optimized for reliable electrical connections and long-lasting durability in your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 687616100002?
You can click on the BUY or RFQ button to purchase 687616100002 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 687616100002?
You can download the 687616100002 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 687616100002?
WURTH ELEKTRONIK
