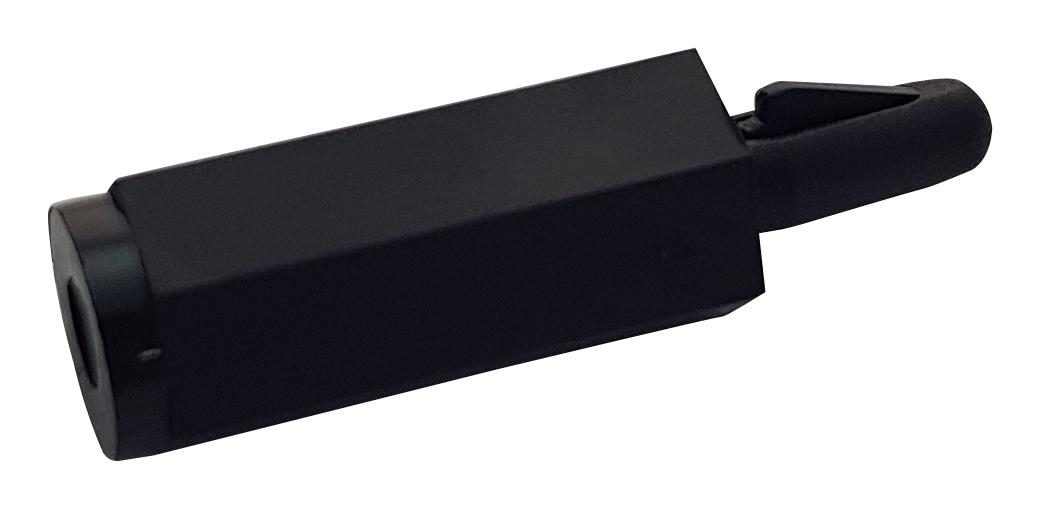

WURTH ELEKTRONIK 973200365 Plastic Spacer with Thread
The Würth Elektronik WA-SNTI 973200365 is a plastic spacer designed for general electronic equipment. Constructed from polyamide, this spacer offers excellent insulation and mechanical strength. It features an internal thread (M3) and a clip for secure mounting, making it ideal for applications requiring precise component spacing and secure connections. Compliant with RoHS and REACH standards, this spacer is suitable for a wide range of electronic assemblies. Care should be taken to adhere to specified storage conditions and torque limits to ensure optimal performance and longevity.
WURTH ELEKTRONIK 973200365 Plastic Spacer with Thread Specifications:
- Dimensions_Lu01: 9.5
- Dimensions_W_s: 9.5
- Material: Polyamide
- Color: Black
- Flammability_Rating: UL94 HB
- Drilling_in_Panel_f: 4
- Panel_Thickness: 2.1
- RoHS_Approval: Compliant [2011/65/EU&2015/863]
- REACh_Approval: Conform or declared [(EC)1907/2006]
- Halogen_Free_IEC: Conform [IEC 61249-2-21]
- Halogen_Free_JEDEC: Conform [JEDEC JS709B]
- Operating_Temperature: -30 up to +110 °C
- Storage_Conditions: < 40 °C ; < 75 % RH
- Moisture_Sensitivity_Level_MSL: 1
- Packaging: Bag
- Length_L: 20
- Inner_Thread_Ti: M3
- Inner_Thread_Length_Tli: 10
- Wrench_SW: 6
