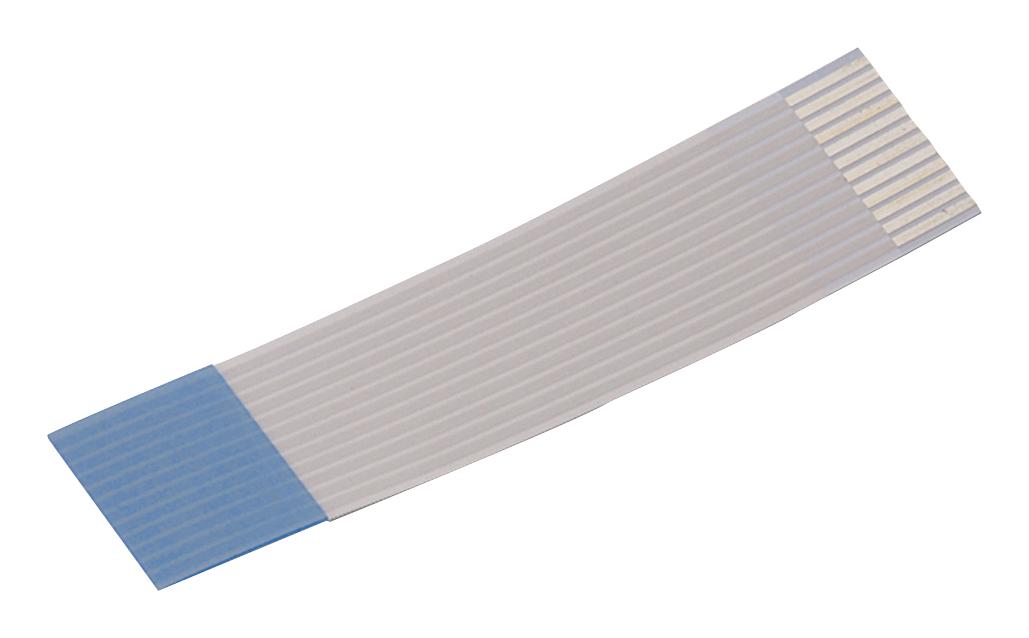

WURTH ELEKTRONIK 687720100002 Flexible Flat Cable
The WR-FFC Flat Flexible Cable is a high-quality, durable connection component designed for electronic equipment requiring flexible interconnections. It features a 0.50 mm pitch, total length of 9.5 mm, and conductor thickness of 0.05 mm, ensuring reliable signal transmission in compact spaces. Made with PET insulation, it resists environmental factors such as moisture and temperature variations, and has a rated current of 0.5 A, working voltage of 60 V. This cable supports efficient, stable, and flexible connections, suitable for modern electronic devices and systems requiring precise and reliable performance.
WURTH ELEKTRONIK 687720100002 Flexible Flat Cable Specifications:
- Pitch: 0.50 mm
- Total Length: 9.5 mm
- Conductor Thickness: 0.05 mm
- Conductor Width: 0.03 mm
- Insulation Thickness: 0.043 mm
- Support Tape Length 1 and 2: 8 mm
- Support Tape Thickness: 0.225 mm
- Material: PET (White Insulation, Blue Tape)
- Operating Temperature: -30°C to +105°C
- Rated Current: 0.5 A
- Working Voltage: 60 V
- Insulation Resistance: 500 V (1000 MΩ minimum)
- Contact Resistance: Max 20 mΩ
- Flexing Cycles: 180° bend, 20 times minimum
- Durability: 20 mating cycles
- Compliance: RoHS, UL, REACH
Buy the Wurth Elektronik 687720100002 – Reliable Flexible Cable for Industrial Applications
Buy your Wurth Elektronik flat flexible cable online today and ensure your electronic projects benefit from a highly reliable, flexible connection solution. Designed for high durability, the cable features a 0.50 mm pitch, 9.5 mm length, and 0.05 mm conductor thickness, making it ideal for compact and demanding applications. Manufactured with high-quality PET insulation and support tapes, it guarantees excellent environmental resistance, stability, and durable performance. Perfect for modern electronic systems requiring precise and flexible interconnections, purchase now for quick delivery and seamless integration.
Order your Wurth Elektronik 687720100002 flexible flat cable today and enhance your electronic system’s reliability with our high-performance, compact interconnection solution.
