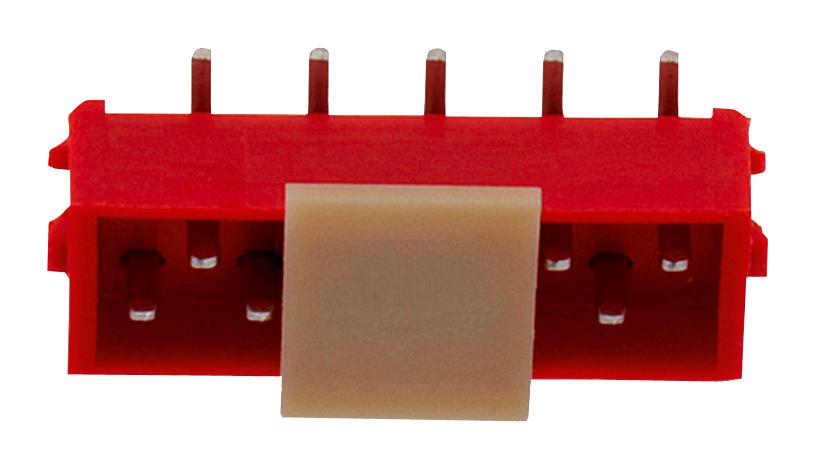

WURTH ELEKTRONIK 690357281276 SMT connector
The WR-MM Male SMT Connector by Wurth Elektronik is designed for precise surface-mount applications in electronic assemblies. Featuring a robust phosphor bronze contact with matte tin plating, it supports 25 mating cycles and operates within -40°C to +105°C. The connector has 12 pins with a pin-to-pin distance of 13.97 mm and a length of 17.27 mm. It complies with RoHS, REACh, and UL standards, making it ideal for professional electronic, automation, and control systems requiring reliable, high-quality interconnect solutions.
WURTH ELEKTRONIK 690357281276 SMT connector Specifications:
- Pins: 12
- Pin to Pin (Middle): 13.97 mm
- Length L: 17.27 mm
- Temperature Range: -40°C to +105°C
- Rated Current: 1.5 A per Pin (PCB)
- Working Voltage: 250 VAC
- Dielectric Withstanding Voltage: 500 V (AC, 1 min)
- Contact Resistance: Max. 10 mΩ
- Insulation Resistance: Min. 1000 MΩ
- Contact Material: Phosphor Bronze
- Contact Plating: Matte Tin over Nickel
- Insulator Material: PAGT
- Insulator Flammability Rating: UL94 V-0
- Durability: 25 mating cycles
- Gender: Male
- Soldering Profile: Max. preheat temperature 200°C, T, within 60-120 sec, ramp-up rate 3°C/sec, peak temp < 260°C, max time at peak 30 sec
- Storage Conditions: Use within 12 months, avoid sunlight, store in original packaging
- Certifications: RoHS, REACh, cULus 323964
Buy the Buy Wurth Elektronik WR-MM Male SMT Connector Part Number 690357281276 Online
Purchase the Wurth Elektronik WR-MM Male SMT Connector online today to ensure your electronic projects benefit from high-quality, reliable interconnection. This connector supports 25 mating cycles, operates within a temperature range of -40°C to +105°C, and features a sturdy phosphor bronze contact with matte tin plating that guarantees long-lasting durability. Its compact design with 12 pins and a pin-to-pin distance of 13.97 mm makes it suitable for various professional electronic, automation, and control systems. Order now for fast delivery and seamless integration into your manufacturing process.
Get Wurth Elektronik WR-MM Male SMT Connector today—designed for high reliability and precision in electronic assemblies.
