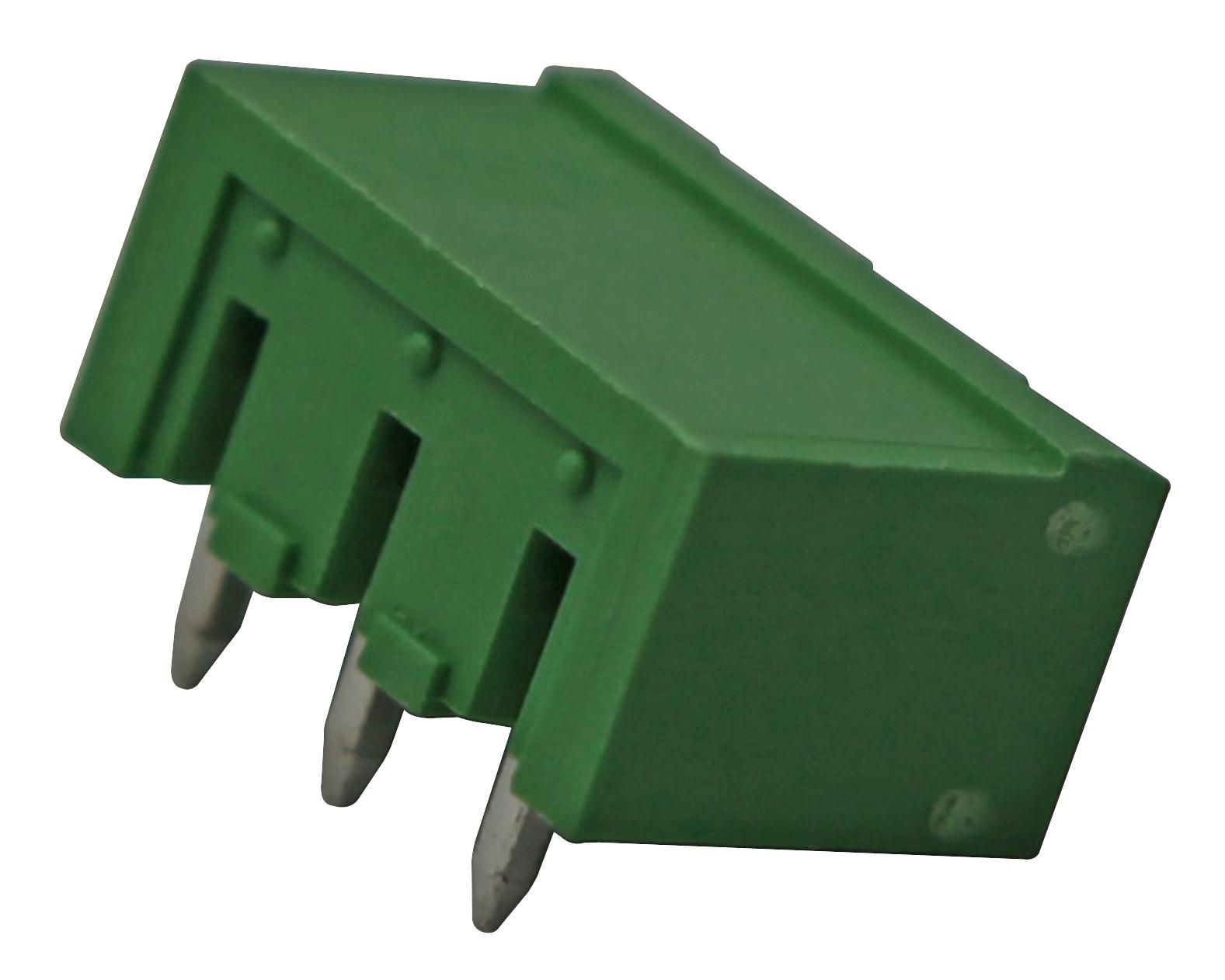

WURTH ELEKTRONIK 691313510003 Horizontal PCB Header
The WR-TBL Series 313 is a 5.08 mm pitch closed horizontal PCB header designed for reliable electrical connections in general electronic equipment. Crafted with brass contacts plated with tin, it offers high durability and excellent electrical performance while supporting operating temperatures from -40°C to +105°C. Certified for RoHS and VDE approval, this connector features UL94 V-0 flame-resistant insulators in green. It supports rated currents of 20 A and withstands voltages up to 300 VAC, making it suitable for various industrial and consumer applications requiring secure and stable connections.
WURTH ELEKTRONIK 691313510003 Horizontal PCB Header Specifications:
- Pitch: 5.08 mm
- Material: Brass contacts, Tin-plated
- Insulator Material: Flame-retardant plastic, UL94 V-0
- Insulator Color: Green
- Operating Temperature: -40°C to +105°C
- Rated Current: 20 A
- Working Voltage: 300 VAC
- Withstanding Voltage: 1600 V (min), 2500 V (max) for 1 min
- Contact Resistance: Max. 20 mΩ
- Certification: RoHS, REACh, VDE approval 40023195, cULus approval 315414
- Preheat Temperature: Min 100°C, Typical 120°C, Max 130°C
- Wave Soldering Profile: Conditions for Pb-Free and Sn-Pb assembly compliant, with specified preheat temps and peak temps.
- Storage Conditions: Use within 12 months of manufacturing date, stored in original packaging
- Soldering: Must comply with Wirth Elektronik soldering specifications; washing not recommended
- Handling: Operate with care to avoid deformation or damage to contacts or actuator.
Buy the Wurth Elektronik Series WR-TBL 313: 5.08 mm Horizontal PCB Header
Secure reliable connections in your electronic assemblies with the Wurth Elektronik Horizontal PCB Header from the WR-TBL Series, featuring a 5.08 mm pitch, durable brass contacts with tin plating, and RoHS and VDE approvals. With operating temperatures from -40°C to +105°C, it supports rated currents of 20A and withstands voltages up to 300 VAC. Ideal for industrial and consumer electronics, it ensures stability and safety. Purchase online today for a high-quality component designed for professional-grade connections, backed by manufacturer certifications and specifications.
Buy Wurth Elektronik WR-TBL Series 313 5.08 mm horizontal PCB connector now and ensure secure, high-performance electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy WURTH ELEKTRONIK 691313510003?
You can click on the BUY or RFQ button to purchase 691313510003 from an authorized WURTH ELEKTRONIK distributor.
How do I troubleshoot issues or seek technical support for part 691313510003?
You can download the 691313510003 datasheet or visit the WURTH ELEKTRONIK website for support.
Who is the manufacturer of 691313510003?
WURTH ELEKTRONIK
