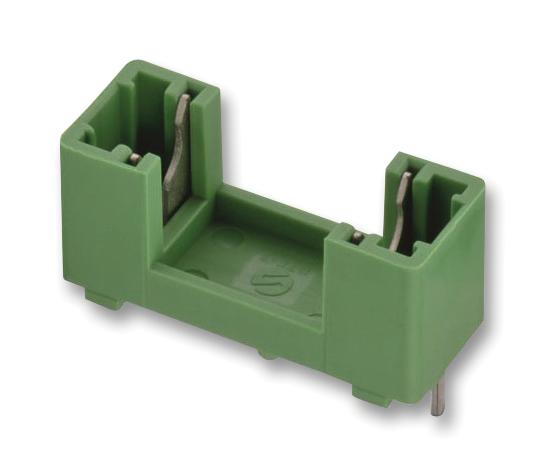

WURTH ELEKTRONIK 696107003002 Fuseholder Blocks PCB Clip Cover
The Wurth Elektronik 696107003002 is a fuseholder block specifically designed for PCB (Printed Circuit Board) mounting. This component provides a secure and reliable method for incorporating fuses into electronic circuits, protecting against overcurrent conditions. Constructed with PA6/66 insulator and copper alloy contacts with Ni+Sn plating, it offers excellent electrical and mechanical properties. It is suitable for a wide range of applications in general electronics, and is RoHS compliant. For critical applications requiring enhanced safety and reliability, prior written approval from Wurth Elektronik is required.
WURTH ELEKTRONIK 696107003002 Fuseholder Blocks PCB Clip Cover Specifications:
- Material A Insulator: PA6/66
- Flammability Rating: UL94V0
- Color: GREEN
- Contact Plating: COPPER ALLOY / Ni+Sn
- Operating Temperature: -30°C up to +120°C
- Compliance: Lead Free and RoHS
- Current Rating: 20 A
- Working Voltage: 250 VAC
- Withstanding Voltage: 1,5 KV
- Rated Power Acceptance: 1.6 W
- Protection Class: I or II
- Contact Resistance: 5/10 mΩ Max
- Fuse-Link: 5x20 mm
- Protection Rate: IP00
- Shocksafe Category: PC1
- Soldering: JEDEC Lead Free Wave Soldering
- Standard: c us Certified: E157417, CAT. N°: PTF/77
- Certification: 129302, TYPE: PTF/77
- Projection: General Tolerance
- Tolerance X: +/- 0.2
- Tolerance XX: +/- 0.15
